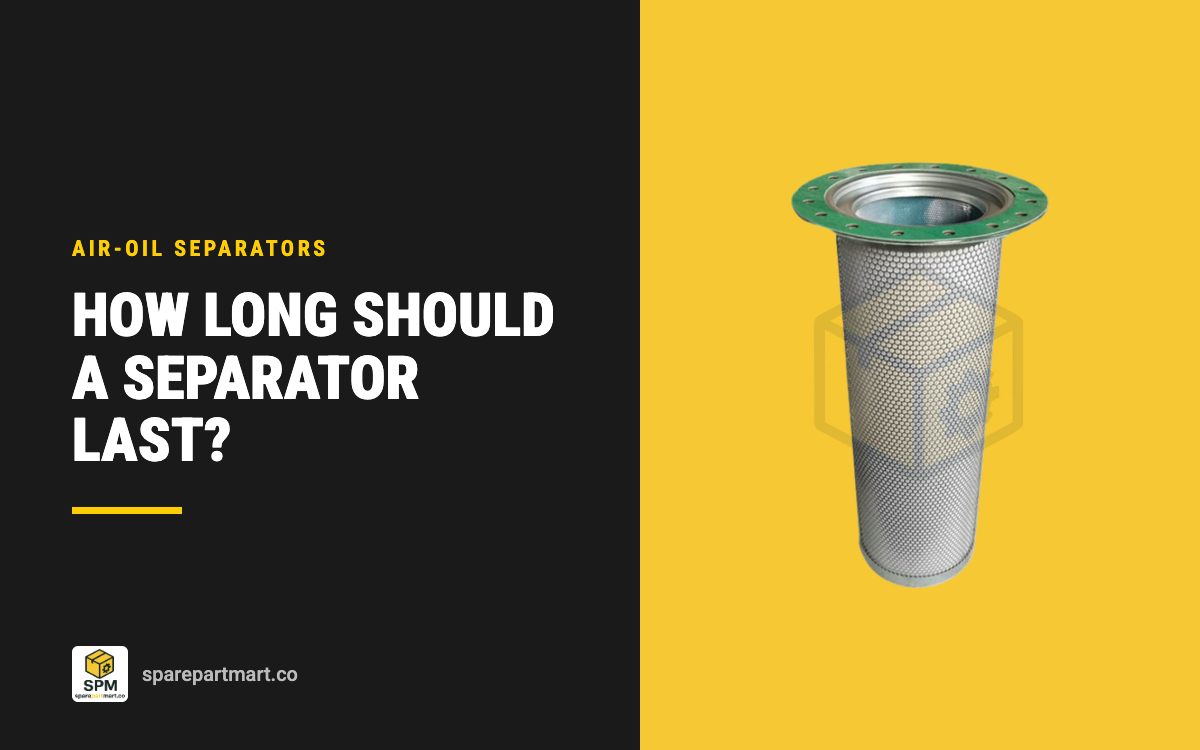

How Long Should an Air-Oil Separator Last? What Shortens It

An air-oil separator in a screw compressor is normally changed every 4,000 running hours or once a year, whichever comes first. That is the interval Atlas Copco prints for its G15L to G22 range, and it is a sound default for most oil-injected screw machines. The real end point is pressure drop, not the calendar: MANN+HUMMEL says to replace a spin-on separator when its flow resistance reaches 1 bar. A separator that hits 1 bar at 1,500 hours is telling you something upstream is wrong, and fitting a new one without finding the cause buys another 1,500 hours.

This guide covers what sets separator life, the four things that shorten it, and how to plan the change so you are not paying for an element that is either half used or long overdue.

The number that decides it: pressure drop

A separator element works by coalescing. Oil mist from the air end passes through layers of borosilicate glass fibre, the droplets merge, and the oil drains to the bottom of the element where the scavenge line returns it to the oil circuit. Of the 274 separator families in our catalogue, 39 have the media recorded, and 38 of those are borosilicate glass fibre; 33 are rated at 3 µm. The same 39 records show 36 elements built for flow from outside to inside, which is the standard arrangement for wrap elements.

As the media loads with particles and oil breakdown products, the resistance to air flow rises. MANN+HUMMEL publishes the figures for its separators at nominal flow and 7 bar operating pressure:

• New wrap element: 0.17 bar pressure drop
• New spin-on separator box: about 0.25 bar
• Change point for a spin-on box: 1 bar
• Design strength of a wrap element: pressure differences of at least 5 bar

That last figure matches our own data: every separator in our catalogue with a collapse rating recorded, 13 of them, is rated at 5 bar. The gap between the 1 bar change point and the 5 bar collapse rating is the safety margin. Running a separator well past 1 bar eats into it, and a collapsed or split element sends oil straight into the air line.

If your compressor has a separator differential reading on the controller, or gauges either side of the element, log it at every service. A steady, slow rise is normal loading. A fast rise means contamination. A sudden fall combined with oil in the air line means the media has ruptured: the air is taking a shortcut, and the element needs replacing immediately. Our guide to diagnosing oil carryover walks through the other causes to rule out before you blame the element.

Why pressure drop costs you money before it costs you a separator

Every bar of pressure lost across the separator is a bar the air end has to make up to deliver the same pressure at your tools. The Atlas Copco Compressed Air Manual puts the cost of raising compressor pressure by 1 bar at about 8% more power. Going from a new element at 0.17 bar to the 1 bar change point adds 0.83 bar, which works out at roughly 6 to 7% more power for the same air delivered.

On a machine that runs two shifts, that energy penalty builds up over the last months of the element's life. Running a separator past its change point to save one element is a poor trade: the electricity bill absorbs the saving, and the risk of a split element and oil-contaminated air lines goes up.

What shortens separator life

MANN+HUMMEL states it plainly in its separator catalogue: the rise in flow resistance, and therefore service life, depends mainly on the cleanness of the oil and the quality of the air filter. Its 2015 compressor filter catalogue explains why. The intake filter, oil filter and separator form one filtration chain. Dust that gets past the intake filter ends up in the oil. Whatever then gets past the oil filter ends up in the separator, which has to carry it along with the oil it is separating. The chain is only as strong as its weakest filter.

In practice, four conditions account for most short-lived separators.

1. A poor or overdue intake filter. The Atlas Copco schedule marks both the air filter and the separator for more frequent replacement in a dusty environment, for exactly this reason. A cheap intake element with poor efficiency, a cracked seal, or an element left in past its restriction limit lets fine dust into the compression chamber. Most of it is washed into the oil and then loaded onto the separator media. If separators keep dying early, check the intake filter and its housing seal first. Our article on intake filter restriction covers how to read it.

2. Hot running. Heat oxidises compressor oil, and oxidised oil leaves breakdown products that load the separator. Machinery Lubrication summarises the Arrhenius rate rule: for every 10 °C rise in temperature, the rate of lubricant oxidation doubles and the oil's life halves. Atlas Copco's own oil intervals show the same effect. For its mineral oil, the interval is 4,000 hours with an air end outlet temperature up to 95 °C, 3,000 hours between 95 and 100 °C, and 2,000 hours between 100 and 105 °C. Above 105 °C the mineral oil is not approved at all.

Atlas Copco lists the causes of a high outlet temperature as a clogged cooler, low oil level, and too little or too hot cooling air from a poorly ventilated compressor room. Fix the temperature and the separator lasts longer as a side effect.

3. Old or wrong oil. Oil left in past its interval, or a top-up with a fluid that was never meant for a screw compressor, puts more breakdown products into the circuit than the oil filter can hold. Atlas Copco also notes that dust and high humidity shorten oil life. Change the oil and the oil filter on schedule, and use a compressor fluid the machine is approved for.

4. Carbon left in the vessel. Atlas Copco's instruction book tells the service technician to inspect the discharge pipe and the inside of the separator vessel for carbon deposits every time the element is renewed, and to remove them if they are excessive. A new element dropped into a vessel full of loose carbon starts its life already loading.

Element or spin-on: the rule is the same

Smaller screw compressors use a spin-on separator that screws onto a head, like an oversized oil filter. Larger machines use a wrap element that sits inside a pressure vessel, often with a flanged top. The size range is wide. In our catalogue the Atlas Copco 1625775300 spin-on is 96 mm across and 211 mm tall on an M25 x 1.25 thread, while the Atlas Copco 2250631300 element is 275 mm across and 820 mm long.

The service rule does not change with size: change at the pressure drop limit or the maker's hour interval, whichever comes first. Spin-on boxes have to be removed with the system fully depressurised; MANN+HUMMEL specifies a belt wrench to remove the box and hand tightening to fit the new one.

How to plan separator changes

• Start from the maker's interval. For most oil-injected screw compressors that is 4,000 hours or a year. Change it at the same service as the oil filter and intake filter, so the whole filtration chain starts clean together.
• Log the pressure drop at each service. Three or four readings show the trend. If the drop is still well under 1 bar at 4,000 hours, the system is clean; keep to the hour and yearly interval anyway.
• Investigate any early rise. If the drop reaches 1 bar well before the interval, look at the intake filter, oil temperature and oil condition before fitting a new separator.
• Check the scavenge line and the vessel. Clear the scavenge line orifice and remove carbon from the vessel while the element is out.
• Match the replacement on dimensions. Outer diameter, height, bore and flange or thread. Part numbers help, and many separators carry dozens of cross references. Our Atlas Copco 2205406509 equivalent is listed against 114 part numbers from different brands. If the label is gone, our guide to identifying a separator by measurement shows what to measure.

You can search the full separator range by part number, or look up a compressor model on our compatibility page. If you cannot find a match, send the old part number or the measurements through a quote request and we will check it against the catalogue.

Frequently asked questions

How many hours does an air-oil separator last?
Most screw compressor makers set 4,000 running hours or one year, whichever comes first. Atlas Copco uses that interval on its G15L to G22 range and shortens it for dusty sites. MANN+HUMMEL says a well-functioning system achieves several thousand hours, with the actual figure set by oil cleanness and intake filter quality.

What pressure drop means the separator needs changing?
MANN+HUMMEL specifies replacement when the flow resistance reaches 1 bar. A new wrap element starts at about 0.17 bar and a new spin-on box at about 0.25 bar.

Can I run a separator past 4,000 hours if the pressure drop is low?
The maker's interval applies whichever limit comes first, and that includes the yearly limit. A low reading means the system is clean, which is good news, but the element still gets changed on schedule.

Why did my new separator fail after a few hundred hours?
The usual causes are a poor or leaking intake filter, oil running too hot, oil past its interval, a blocked scavenge line, or carbon left in the separator vessel. Find and fix the cause before fitting another element.

Should I change the oil filter and air filter at the same time?
Yes, when they are due at the same interval. Atlas Copco schedules the oil filter, air filter and separator together at 4,000 hours or yearly, and all three filters depend on each other.
