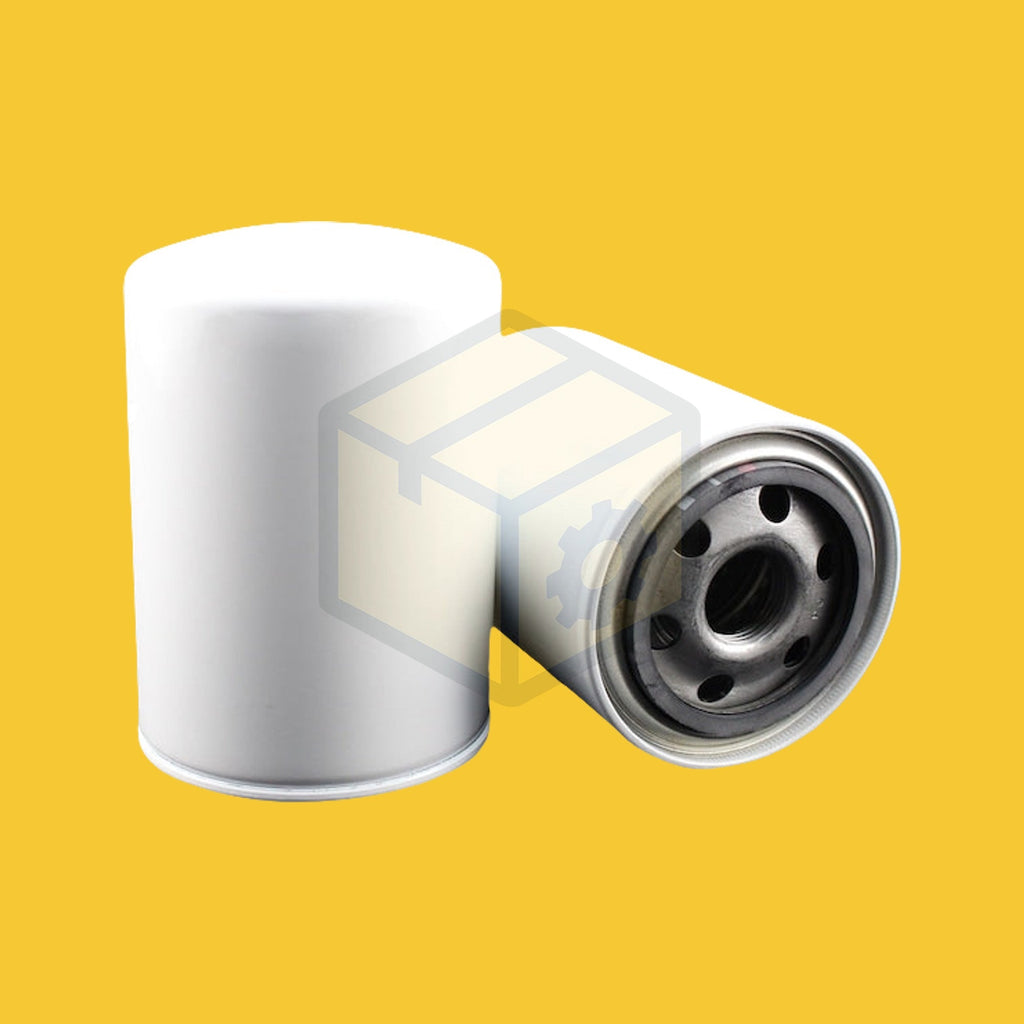

This aftermarket replacement part SPM-OIL-1278 Oil Filter is engineered to meet or exceed OEM standards. Built for dependable performance and long service life, it delivers OEM-level fit and reliability at a competitive cost.
| Burst Pressure (BURST-P) | 21 bar |
| Element Collapse pressure (COL-P) | 5 bar |
| Filtration Media (FILT-MED) | Impregnated Paper 25 µm |
| Media type (MED-TYPE) | Impregnated Paper |
| Filtration Rating (F-RATE) | 25 µm |
| Total Height (H-TOTAL) | 145 mm |
| Thread (TH) | UN 1.1/8 inch Female Bottom 16 |
| Type (TH-type) | UN |
| Thread Size | 1.1/8 inch |
| Orientation | Female |
| Position (Pos) | Bottom |
| Treads per inch (TPI) | 16 |
| Working Pressure (WORK-P) | 12 bar |
| Outer Diameter (Ø OUT) | 95.5 mm |
| Stat. HS-Code | 84149000 |
| Country of Manufacture | China |
| Brand | Code |
|---|---|
| AGCO | 3621294M1 |
| Baldwin | BT230 |
| Baldwin | BT453 |
| Capa | CP13235 |
| Caterpillar | 1N3224 |
| Caterpillar | 1R0713 |
| Caterpillar | 1W2638 |
| Caterpillar | 6V5875 |
| Caterpillar | 778190 |
| Caterpillar | 8N9586 |
| Caterpillar | 8T4427 |
| Caterpillar | 9N5570 |
| Caterpillar | 9N9586 |
| Cessna Hydraulic | 6200AF |
| Cessna Hydraulic | 62200AF |
| Cessna Hydraulic | 62200B |
| Cim-Tek | 70123 |
| Clark Michigan | 892842 |
| Coopers | HSM6027 |
| Coopers | LSF5015 |
| Digoema | DGMH20 |
| Digoema | DGMH2020J |
| Donaldson | HFP556005 |
| Donaldson | P555570 |
| Donaldson | P779218 |
| Donaldson | P779654 |
| Donaldson | P779661 |
| Dynapac | 752091 |
| Fai Filtri | CS-050-4-0-P25-A |
| Fleetguard | HF35323 |
| Fleetguard | HF6005 |
| Fleetguard | HF6068 |
| Fleetguard | HF6203 |
| Fleetguard | LF3342 |
| Fluitek | H370610M22 |
| Fuchs | 5527655814 |
| Fuchs | 5527655814 |
| Gradall | 80933068 |
| Grove | 9414100136 |
| Hastings | HF733 |
| Hengst | H17W22 |
| Hydac | H350577 |
| Hydac | H573082 |
| Hyundai | XJDH0242 |
| IHI | 078740501 |
| IHI | 1551035180 |
| Ingersoll Rand | 52248895 |
| Ingersoll Rand | 57269433 |
| John Deere | AT60645 |
| Kobelco | S1551000320 |
| Kobelco | S1551020200 |
| Komatsu | 3616011120 |
| Komatsu | 3ED6641130 |
| Lancer Boss | 8876594 |
| Lenz | CP100210 |
| Link Belt | E3J0265 |
| Luberfiner | LFP664 |
| Luberfiner | LP6005 |
| Mahle | OC87 |
| Mahle | PER222H |
| Mercedes-Benz | 3762700498 |
| Morbark | 29245027 |
| Napa | 1633 |
| Napa | 1663 |
| New Holland (CNH) | 215780 |
| New Holland (CNH) | 215787 |
| New Holland (CNH) | 3962191 |
| New Holland (CNH) | 3962195 |
| New Holland (CNH) | 511440 |
| New Holland (CNH) | 691681 |
| New Holland (CNH) | 691681 |
| New Holland (CNH) | 71413032 |
| New Holland (CNH) | 77033616 |
| New Holland (CNH) | 80691681 |
| New Holland (CNH) | 83962191 |
| New Holland (CNH) | 89846407 |
| New Holland (CNH) | D9HZ6731A |
| New Holland (CNH) | DHZ6731B |
| Oxfil | OF.8511 |
| Pel Job | 1551000320 |
| Pel Job | 1551020200 |
| Pel Job | 1551020310 |
| Purolator | H30221 |
| Purolator | H32210 |
| Purolator | PER221H |
| Rammax | 5166514022 |
| Renault Trucks (RVI) | 5000816061 |
| Renault Trucks (RVI) | 6005019765 |
| Tadano | 36670109511 |
| Tamrock | 3832417 |
| Terberg | 28040481 |
| Towmotor | 85261 |
| Towmotor | A85261 |
| Uniflux | XH161 |
| Vickers | 350577 |
| Vickers | 573082 |
| Volvo | 1193976 |
| Volvo | V1111842 |
| Wayne | 42820 |
| WIX | 51240 |
| WIX | 51268 |
| WIX | 51633 |
| WIX | 51663 |
| WIX | 551268 |
| WIX | 551633 |
| Woodgate | WGH6005 |
| Yamaschin | CSP0825 |
| Yamaschin | YSKCSP0830 |
| Yamaschin | YSKCSP08N30 |
| Zinga | VE10 |
| Zinga | VE10P |
