| Type | BSP |
| Thread Size | 1.1/2 inch |
| Orientation | Female |
| Position | Side |
| Type | BSP |
| Thread Size | 1.1/2 inch |
| Orientation | Female |
| Position | Bottom |
| Filtration Media | Paper Cellulose 5 µm 4550 cm2 |
| Media type | Paper Cellulose |
| Filtration Rating | 5 µm |
| Permissible Flow | 144 m3/h |
| Total Height | 157 mm (6 3/16") |
| Product Net Weight | 1.85 kg (4.08 lbs) |
| Outer Diameter | 173 mm (6 13/16") |
| Stat. HS-Code | 84149000 |
| Country of Manufacture | China |
| Brand | Code |
|---|---|
| Donaldson | FIOA220 |
| Donaldson | P760151 |
| Fai Filtri | SE-155-M90-SG |
| Ikron | HF41030195ASMI125GLA01 |
| Ikron | HF41030195ASMS090GLA01 |
| Ikron | HHB30050 |
| Oxfil | HF.9602 |
| Sofima (UFI) | ESA32B16WMF |
| Sofralub | A250125 |
| Spare Part Mart | SPM-HYD-1909 |
Found this part cheaper somewhere else? Send us the listing and we'll beat any genuine competitor's price under our Price Beat Guarantee. We continually benchmark the market so you don't have to, so you can buy with confidence knowing you're getting the best available price on Spare Part Mart SPM-HYD-1909.
High‑contamination environments
In dusty or abrasive settings such as construction and mining, the 5 µm cellulose media captures fine particles while the large surface area extends element life, reducing unscheduled downtime and keeping your machinery running longer.
Continuous‑duty systems
For hydraulic systems that run 24/7, the high allowable flow rate of 144 m³/h ensures efficient filtration without creating a bottleneck. This maintains consistent fluid cleanliness and contributes to lower energy costs over time.
Fleet maintenance standardisation
Workshops managing equipment from multiple OEMs can consolidate their filter inventory with this single aftermarket part, as it replaces six brand‑specific elements. This simplifies stock keeping and cuts overall inventory expense.
Responsive service intervals
The robust build and ample dirt‑holding capacity support longer running periods between changes, allowing service planners to optimise maintenance schedules and reduce the frequency of filter replacements without compromising system health.

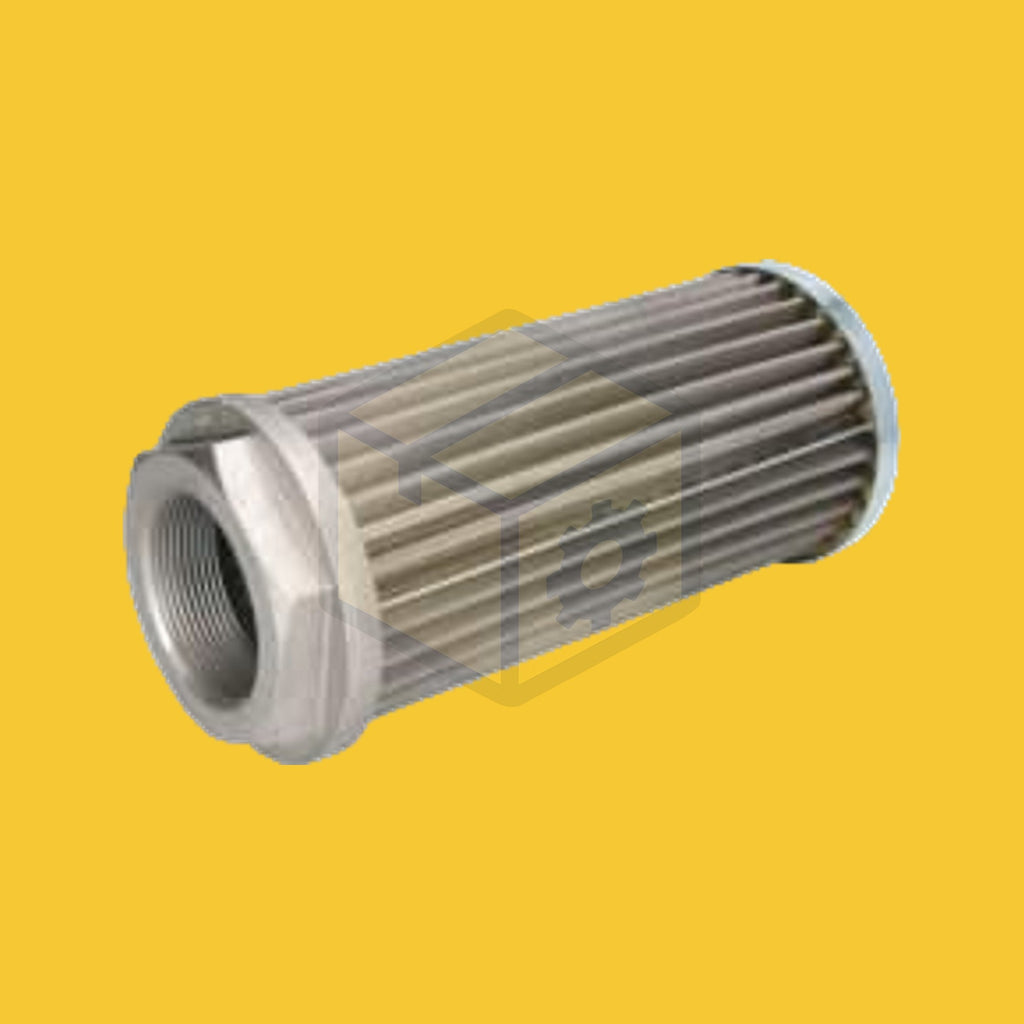

The SPM-HYD-1909 is a direct replacement for hydraulic filters from Donaldson, Fai Filtri, Ikron, Oxfil, Sofima (UFI) and Sofralub that share the same thread, media and dimensions. It has BSP 1.1/2 inch female threads in both a side and bottom port configuration. Please check your existing filter’s outer diameter (173 mm), height (157 mm) and thread specification to ensure compatibility.
This element uses paper cellulose media with a filtration rating of 5 µm absolute. The media area is 4550 cm², which provides an excellent balance of particle capture efficiency and contaminant‑holding capacity for demanding hydraulic circuits.
The filter has BSP 1.1/2 inch female threads, with ports located on the side and bottom of the canister. Total height is 157 mm and outer diameter is 173 mm. It weighs 1.85 kg. Always confirm these measurements against your current housing before ordering.
No, it is an aftermarket replacement manufactured to match the OEM specifications for form, fit and function. It is not affiliated with Donaldson, Fai Filtri, Ikron, Oxfil, Sofima or Sofralub. Choosing this part gives you identical performance and reliability at a more affordable price.
First, depressurise the hydraulic system and place a drip tray underneath. Unscrew the old filter by hand or with a suitable strap wrench. Clean the mounting surface and lightly oil the new filter’s gasket. Spin the SPM-HYD-1909 on until the gasket contacts, then tighten a further half to three‑quarter turn by hand. Do not over‑tighten. Finally, restart the system and check for leaks.
