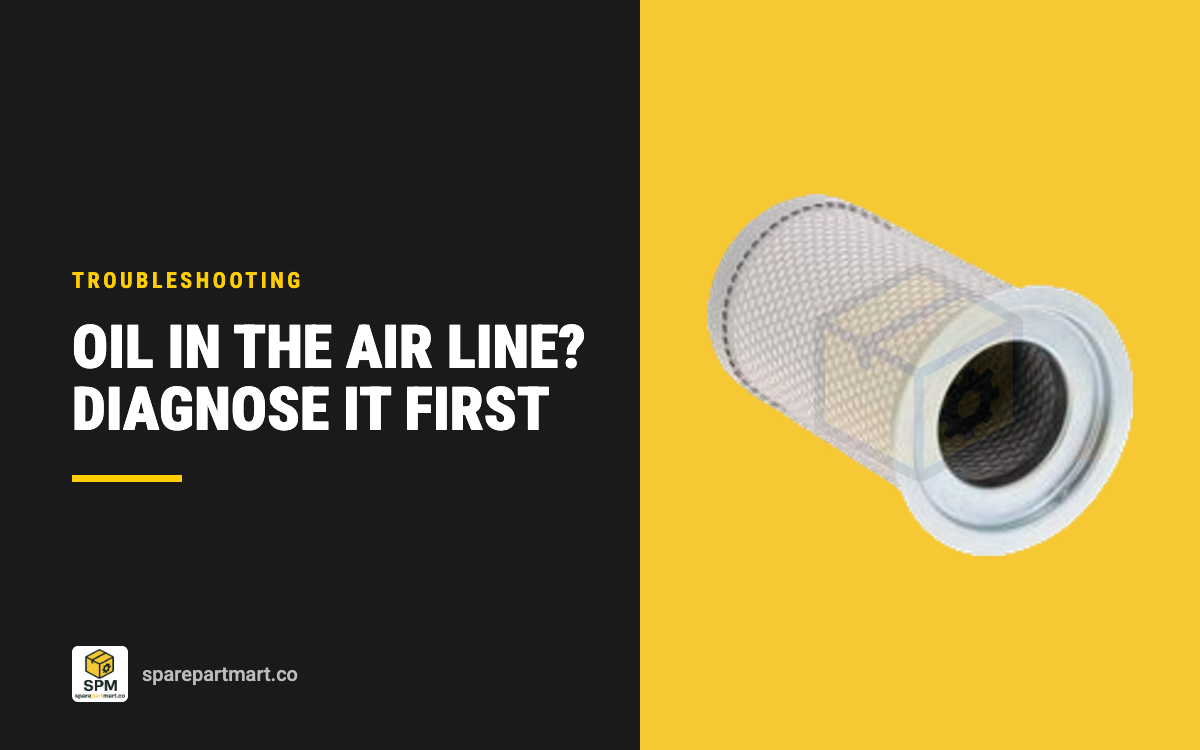

Compressor Blowing Oil Into the Air Line? How to Diagnose a Failed Separator

If you're finding oil in your air lines, at the tool, or pooling in the bottom of your receiver, the separator is the usual suspect. It isn't always the culprit. Replacing a perfectly good separator element is an expensive way to not fix the problem, and it is one of the most common mistakes in compressor maintenance.

This guide walks through diagnosing oil carryover properly, in the order that costs you the least time. Work through it top to bottom and you'll either find the real cause or confirm the element genuinely needs replacing.

First, understand what the separator actually does

In a rotary screw compressor, oil isn't a contaminant. It's injected deliberately. It seals the rotors, carries away heat, and lubricates the bearings. By the time air leaves the airend it's carrying a heavy oil mist, and the air-oil separator's job is to pull that oil back out before the air reaches your tools.

The element does this by coalescing. The air passes through dense borosilicate glass fibre media, tiny oil droplets collide and merge into larger ones, and gravity drops them into a sump at the bottom of the element. A scavenge line then sucks that collected oil back into the compressor's oil circuit.

A healthy system delivers air with only a few parts per million of residual oil, typically quoted at around 2 to 5 ppm. When you're seeing visible oil, something in that chain has failed, and the chain has more links than just the element.

Step 1: Check the oil level before anything else

This is the single most common cause of oil carryover, and it's free to check.

An overfilled compressor will blow oil regardless of how good the separator is. Excess oil floods the element faster than it can coalesce and drain, and it simply passes straight through. If someone topped the machine up recently, start here.

• Check the level with the machine stopped and depressurised, not running
• Give it 10 to 15 minutes after shutdown for oil to drain back to the sump
• Fill to the middle of the sight glass, not the top

If the level is high, drain to spec, run the machine for an hour, and re-check the air. Plenty of "failed separators" are fixed right here.

Step 2: Check the scavenge line, the one everybody misses

If the oil level is correct, this is your next stop, and it is one of the most often overlooked faults on the whole machine.

The scavenge line is a narrow tube running from the bottom of the separator element back to the airend. It returns the oil the element has collected. It's narrow by design, and it usually has a small orifice or strainer in it, which means it blocks with varnish and carbon over time.

When it blocks, collected oil has nowhere to go. It pools in the bottom of the element, saturates the media from below, and gets pushed straight through into the air line. The symptom is identical to a failed element. The element itself may be perfectly fine.

To check it:

• Depressurise the machine completely and confirm zero pressure at the gauge
• Disconnect the scavenge line at both ends
• Look for the orifice or strainer, usually at the airend end
• Blow the line through with compressed air and clear the orifice with a fine wire
• Check the sight glass in the line, if fitted. You should see oil moving through it when running

A blocked scavenge line will destroy a new separator element in short order, so if you find one blocked, clear it before fitting anything new. Otherwise you'll be doing the same job again in a month.

Step 3: Confirm the minimum pressure valve is working

The minimum pressure valve holds a floor of pressure, typically around 4 bar, in the separator housing. That back-pressure is what makes coalescing work, and it's what drives oil through the scavenge line.

If the valve is stuck open or set too low, the machine runs at low system pressure and air velocity through the element rises sharply. Above a certain velocity the element stops coalescing and starts simply blowing droplets through.

The tell-tale here is oil carryover that's worse at low system pressure or immediately after startup, and improves as pressure builds. If that pattern matches what you're seeing, inspect the valve before condemning the element.

Step 4: Consider the oil itself

Two oil-related faults produce carryover.

Wrong oil. Automotive or hydraulic oil in a screw compressor foams. Foam doesn't coalesce. It passes through the element as a froth. If the machine was topped up with whatever was on the shelf, drain and refill with a proper compressor fluid.

Degraded oil. Oil past its service life loses its anti-foaming additives and begins to varnish. Running temperature matters enormously here. Sustained operation above about 100°C dramatically shortens fluid life and accelerates the varnishing that blocks scavenge lines. If your machine runs hot, you'll go through separators faster no matter what you fit.

Step 5: Now assess the element

If oil level, scavenge line, minimum pressure valve and fluid all check out, the element is the likely cause. There are two failure modes.

Saturation. The media is simply full. This is normal end-of-life. A quality element should give 3,500 to 5,200 running hours, though that figure assumes clean oil and sensible operating temperatures. Dirty environments and high heat pull it toward the bottom of the range.

Rupture. The media has split, usually from a pressure spike or from running long past service life. This produces sudden, heavy carryover rather than the gradual increase saturation causes. A ruptured element often shows a measurable drop in differential pressure, because the air is now taking a shortcut.

Reading the pressure differential

If your machine has a separator differential gauge, it's the most objective measurement you have.

• Below 0.02 MPa (0.2 bar): a new, healthy element
• Rising steadily over time: normal loading, plan a replacement
• Above 0.8 to 1.0 bar: saturated, replace it now
• Sudden drop plus heavy oil: suspect a rupture

There's a direct cost argument for not letting differential climb. The US Department of Energy's rule of thumb is that every 2 psi of extra pressure costs about 1% more energy. One bar is 14.5 psi, so every additional bar of pressure drop across a saturated separator costs roughly 7% in energy consumption. On a compressor running continuously, a neglected separator can cost more in electricity than the replacement element does.

Choosing a replacement

Once you've confirmed the element, match it on three things: outer diameter, overall height, and inner diameter. Part numbers are helpful but they are not the whole story. The same physical element is frequently sold under a dozen different brand codes, and a single part code can appear against more than one brand.

If the old element's label is unreadable, measure it. A separator can be identified from its dimensions alone, and we've written a separate guide covering exactly how to do that.

When you fit the new one:

• Clean the sealing faces thoroughly before fitting
• Check the gasket is seated and that you haven't left the old one stuck in place. A doubled gasket is a guaranteed leak
• Clear the scavenge line while you have access, even if it looks fine
• Replace the oil and oil filter at the same time if they're anywhere near due
• Reset your hour counter so the next service interval means something

The short version

Oil in the air line means: check the oil level, then the scavenge line, then the minimum pressure valve, then the fluid condition, and only then the element. Four of those five cost nothing but time.
