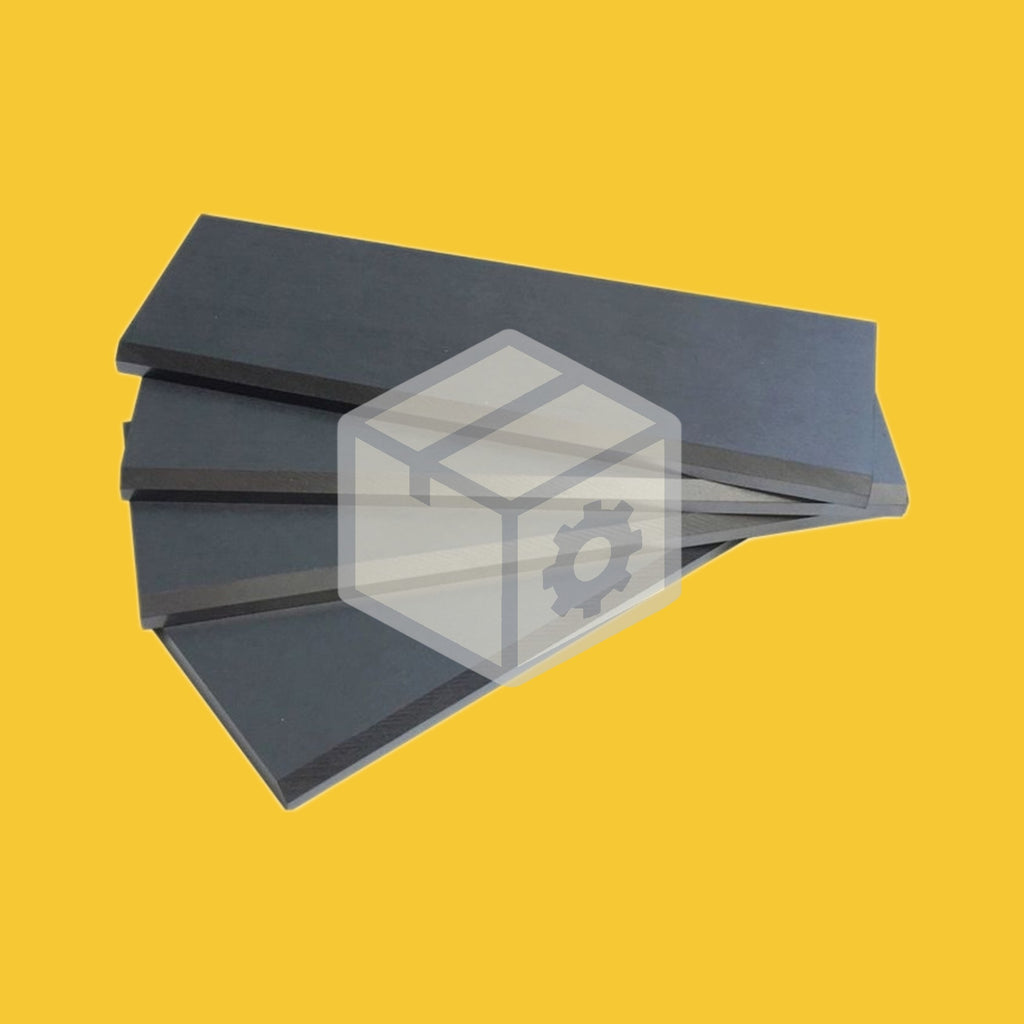

Aftermarket replacement carbon vane set for Orion KRX3, KRS3, KRF15, CBX15, CBF1515 dry running (oil free) rotary vane vacuum pumps and compressors. It replaces Orion part number 04101754010 (also listed as 04009564010): a set of 4 graphite carbon vanes, each 66 x 34 x 4 mm (length x height x thickness).
In a dry running Orion pump the carbon vanes are the main wear part. They slide in the rotor slots, are thrown out against the cylinder wall and wear a little on every turn. As they shorten the pump loses vacuum and flow, runs hotter and gets noisier, and a vane worn too far can break and damage the cylinder. Orion gives a minimum vane height in each pump's manual; change the full set before the vanes reach it.
Always change all 4 vanes together so the rotor stays balanced, and clean the carbon dust out of the pump and filters while it is open. The vanes are made from self lubricating graphite carbon to the Orion size and come as a complete set for one pump.
| Part Type | Carbon vane set (rotary vanes) |
| Replaces | Orion 04101754010 / 04009564010 |
| Vanes in Set | 4 |
| Vane Size (L x H x T) | 66 x 34 x 4 mm |
| Material | Self lubricating graphite carbon |
| Fits | Orion KRX3, KRS3, KRF15, CBX15, CBF1515 |
| Pump Type | Dry running rotary vane vacuum pump / compressor |
| Stat. HS-Code | 841490 |
Orion pumps
Check the pump model plate and measure an old vane: 66 x 34 x 4 mm.
| Pack | Dimensions | Orion Part No.(SPM Part No.) | Fits |
|---|---|---|---|
| Set of 4 | 66 x 34 x 4 mm | 04101754010 / 04009564010(SPM-VAN-2220) | Orion KRX3, Orion KRS3, Orion KRF15, Orion CBX15, Orion CBF1515 |
Planned vane changes
Measure the vane height at every service and change the set before it reaches Orion's minimum for your pump. Keeping a spare set means the change happens at the service, not after a breakdown.
Falling vacuum or flow
If the pump takes longer to pull down, holds a weaker vacuum, or sheets and parts start slipping, worn vanes are the usual cause once the filters are clean.
Noisy or hot running
Short or chipped vanes chatter in the slots and the pump runs hotter. Stop and check the vanes before one breaks.
Typical machines
Orion dry running vane pumps are fitted to the sheet feeders and deliveries of offset printing presses, folding and paper handling machines, and packaging lines.
| Seller | Price | Checked |
|---|---|---|
| eBay, aftermarket set, free shipping | USD 74.97 | checked 4 Oct 2026 |
| eBay, aftermarket set, free delivery | USD 84.34 | checked 4 Oct 2026 |
| Spare Part Mart | USD 59.98 | this page |
Our price is 20% to 29% less than the aftermarket sets listed above. Prices are for the complete set of 4 vanes in US dollars, as listed on the date shown.
Found this part cheaper elsewhere? Send us the listing and we will beat it under our Price Beat Guarantee. Every order is also covered by our 30 day money back guarantee.
No. It is an aftermarket set made to the size of the Orion 04101754010 vanes. It is not made by or affiliated with Orion; the Orion numbers are used only to show what it replaces.
Yes if your pump is a Orion KRX3, KRS3, KRF15, CBX15, CBF1515 and the old vanes measure 66 x 34 x 4 mm. Check the model plate on the pump and measure an old vane before ordering.
The rotor in these pumps has 4 slots. Change every vane at the same time; mixing new and worn vanes unbalances the rotor and wears the new vanes fast.
When the vanes are worn down to the minimum height in your pump's manual, or sooner if a vane is chipped or cracked. Measure them at every filter service.
Clean the carbon dust from the pump housing, rotor slots and filters, and change the inlet and outlet filters if they are loaded. Fit the vanes the same way round as the old ones, with the bevelled edge against the cylinder wall.
Yes, we ship worldwide. Shipping is calculated at checkout, and every order is covered by our 30 day money back guarantee and price beat guarantee.
