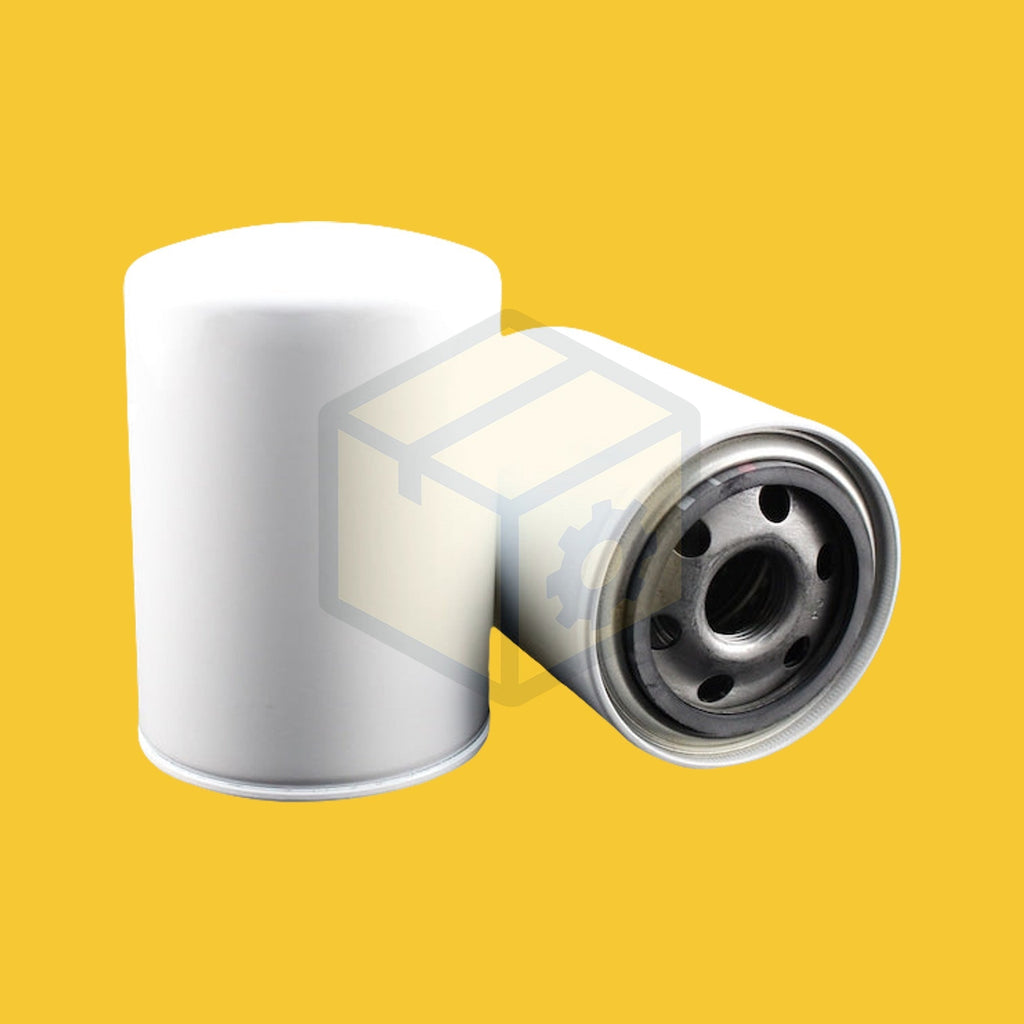

This industrial-grade Separator is specifically developed to replace the Atlas Copco 1202539500 in demanding environments.
| Burst Pressure (BURST-P) | 23 bar |
| Element Collapse pressure (COL-P) | 5 bar |
| Filtration Media (FILT-MED) | Borosilicate micro glass fibre 3 µm |
| Media type (MED-TYPE) | Borosilicate micro glass fibre |
| Filtration Rating (F-RATE) | 3 µm |
| Permissible Flow (FLOW) | 300 m3/h |
| Flow direction (FLOW-DIR) | Out-In |
| Body Height (H-0) | 305 mm |
| Height-1 (H-1) | 1.5 mm |
| Total Height (H-TOTAL) | 306.5 mm |
| Seal (SEAL) | NBR o-ring |
| Material (S-MAT) | NBR |
| Type (S-TYPE) | o-ring |
| Thread (TH) | UN 1.1/2 inch Female Bottom 16 |
| Type (TH-type) | UN |
| Thread Size | 1.1/2 inch |
| Orientation | Female |
| Position (Pos) | Bottom |
| Treads per inch (TPI) | 16 |
| Product Net Weight (WEIGHT) | 2.78 Kg |
| Working Pressure (WORK-P) | 20 bar |
| Outer Diameter (Ø OUT) | 137 mm |
| Stat. HS-Code | 84149000 |
| Country of Manufacture | China |
| Brand | Code |
|---|---|
| Atlas Copco | 1202539500 |
| Atlas Copco | 1202834300 |
| Atlas Copco | 1614567300 |
| Fai Filtri | DSP-400-6-HC |
| HiFi Filter | OV 6077 |
| Noitech | NS 000350 |
| Oxfil | SP.5003 |
| Sotras | DF 5003 |
| Spare Part Mart | SPM-SEP-1080 |
| T.G. Filter | 140305 A |
