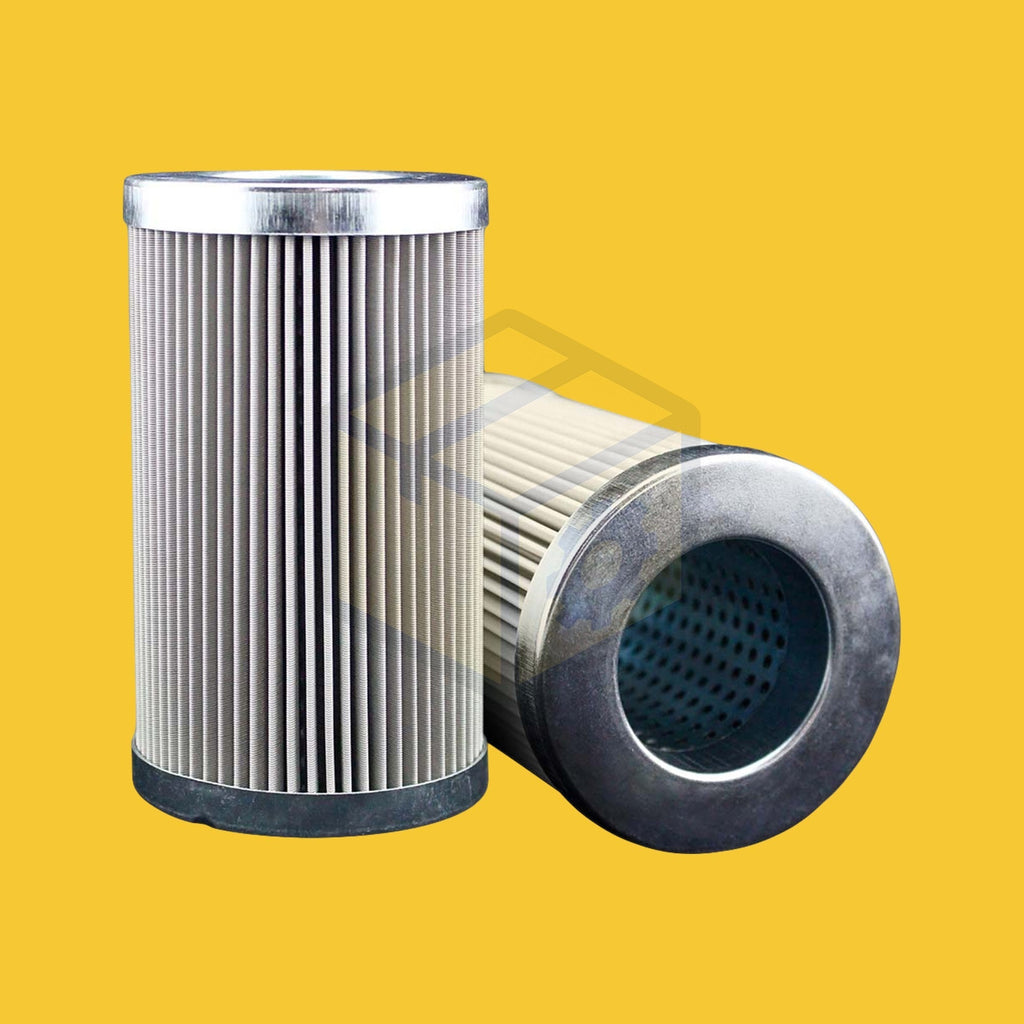

| Filtration Media | Wire Mesh 40 µm |
| Media type | Wire Mesh |
| Filtration Rating | 40 µm |
| Flow direction | Out-In |
| Total Height | 142 mm (5 19/32") |
| Product Net Weight | 0.46 kg (1.01 lbs) |
| Smallest Inner Diameter | 47.5 mm (1 7/8") |
| Outer Diameter | 83 mm (3 9/32") |
| Stat. HS-Code | 84149000 |
| Country of Manufacture | China |
| Brand | Code |
|---|---|
| Airfil | AFKOVM29340 |
| Fai Filtri | CF-115-M40-NA |
| Fleetguard | ST1576 |
| Hy-Pro | HP500L540W |
| Internormen | 04PI831540G16EO |
| Internormen | 303316 |
| Mahle | PI8315DRG40 |
| Oxfil | HF.7473 |
| Spare Part Mart | SPM-HYD-1208 |
| Stauff | SL045B40B |
Found this part cheaper somewhere else? Send us the listing and we will beat it by 5% under our Price Beat Guarantee. Every order is also covered by our 30 day money back guarantee.
Heavy-Duty Industrial Hydraulics
In continuous-duty hydraulic power units, the 40 µm wire mesh media captures fine particulates without restricting flow, reducing wear on pumps and valves. This helps extend service intervals in demanding manufacturing environments.
Mobile Equipment Hydraulic Systems
For construction and agricultural machinery operating in dusty conditions, the robust wire mesh construction resists collapse under pressure spikes. The compact 83 mm diameter fits tight engine bays while providing reliable filtration.
Hydraulic Oil Conditioning Circuits
In offline filtration loops or kidney-loop systems, the out-in flow design allows easy installation in existing filter housings. The 0.46 kg weight simplifies handling during element changes in maintenance schedules.
Inventory Consolidation for Multi-Brand Fleets
Fleet operators servicing equipment from multiple OEMs can standardise on this single aftermarket element, as it cross-references eight major brands. This reduces stock complexity and simplifies procurement.
Check your current filter element's dimensions: outer diameter 83 mm, total height 142 mm, and smallest inner diameter 47.5 mm. Also verify the flow direction is out-in. If these match, this filter is a direct replacement.
This filter uses a 40 µm wire mesh media. Wire mesh is cleanable and offers high dirt-holding capacity, suitable for hydraulic systems requiring moderate filtration efficiency.
The filter has an outer diameter of 83 mm, total height of 142 mm, and smallest inner diameter of 47.5 mm. Thread specifications are not provided; please consult your filter head or housing manual.
This is an aftermarket replacement filter, not an OEM part. It is built to match the specifications of filters from Airfil, Fai Filtri, Fleetguard-ST, Hy-Pro, Internormen, Mahle, Oxfil, and Stauff, offering a cost-effective alternative.
Installation is straightforward: turn off the system, relieve pressure, remove the old element, clean the housing, insert the new this filter with the correct orientation (out-in flow), and reassemble. Always follow your equipment's manual.
We offer worldwide shipping with tracking. Your purchase is covered by a 30-day money-back guarantee and our price-beat guarantee, ensuring you get the best value.
