| Element Collapse pressure | 20 bar (290 PSI) |
| Filtration Media | Inorganic Microfibers 5 µm |
| Media type | Inorganic Microfibers |
| Filtration Rating | 5 µm |
| Flow direction | Out-In |
| Total Height | 428 mm (16 7/8") |
| Largest Inner Diameter | 56.1 mm (2 7/32") |
| Largest Outer Diameter | 96 mm (3 25/32") |
| Stat. HS-Code | 84149000 |
| Country of Manufacture | China |
| Brand | Code |
|---|---|
| Airfil | AFKOVL3823 |
| Baldwin | PT302MPG |
| Baldwin | PT320 |
| Baldwin | PT320MPG |
| Behringer | BE89001603A |
| Comex | P8900D16N3 |
| Comex | P8900D16N4003 |
| Donaldson | P167942 |
| Epe | 168900UH3SLS000P |
| Fai Filtri | CF-890-3-A03-NA |
| Fairey Arlon | R890H1603A |
| Filtersoft | H8916MABL |
| Finn Filter | FC1393F003BS |
| Finn Filter | FC1393Q002BT |
| Fleetguard | HF7518 |
| Fram | C7066 |
| Hy-Pro | HP89L163MB |
| Hycon | H890016003BN |
| Hydac | 10816D03BN |
| Hydac | 2062445 |
| Internormen | 0589003VG10EP16 |
| Internormen | 301095 |
| Luberfiner | LH4262 |
| Mahle | 891032SMX3 |
| Mann-Filter / Mann & Hummel | HD101003 |
| Napa | 1698 |
| Oxfil | HF.8061 |
| Pall | HC8900FKP16H |
| Parker Parfit | FC1393Q003BT |
| Parker Parfit | GO2775 |
| Parker Parfit | PR4367 |
| PTI | P89150GFB |
| Schroeder | SBF890016S1B |
| Schroeder | SBF890016Z1B |
| Schroeder | SBF890016Z3B |
| Sofima (UFI) | 30846 |
| Spare Part Mart | SPM-HYD-1585 |
| ST Separat Tech | 2890L03B16 |
| ST Separat Tech | 3890DGCB16 |
| ST Separat Tech | 8890L03B16 |
| Sta uff | SP180E03B |
| Stauff | SP160E03B |
| Triboguard | 8900163UM |
| Vickers | V2691B5C03 |
| Vickers | V2691B5V03 |
| Wabco | VE1056 |
| WIX | 51698 |
We check what other aftermarket sellers charge for this same part. Their prices on the date we checked:
| Seller | Price | Checked |
|---|---|---|
| eBay, aftermarket seller | USD 130.34 | 6 Oct 2026 |
| Spare Part Mart | USD 68.42 | Today |
Our price of USD 68.42 is approximately 48% less than this seller.
Found this part cheaper somewhere else? Send us the listing and we will beat it by 5% under our Price Beat Guarantee. Every order is also covered by our 30 day money back guarantee.
Dusty Operating Environments
In mining, earthmoving or construction sites where airborne particles are prevalent, the 5-micron inorganic microfibre media efficiently removes contaminants before they cause premature wear. This helps extend the service life of hydraulic components even under gritty conditions.
Continuous-Duty Systems
For hydraulic systems running around the clock in manufacturing or processing plants, consistent filtration is vital. This element supports long service intervals by maintaining high dirt-holding capacity, reducing the frequency of filter changes and associated downtime.
Maintenance Schedule Alignment
When servicing multiple pieces of Hydac equipment, standardising on one aftermarket filter simplifies inventory. Technicians can swap in this filter during scheduled inspections, confident in its direct fit and reliable performance.
High-Pressure Circuits
Hydraulic circuits operating near the filter’s 20 bar collapse rating need robust structural integrity. The element’s reinforced design prevents media migration, safeguarding sensitive valves and variable-displacement pumps from damage.

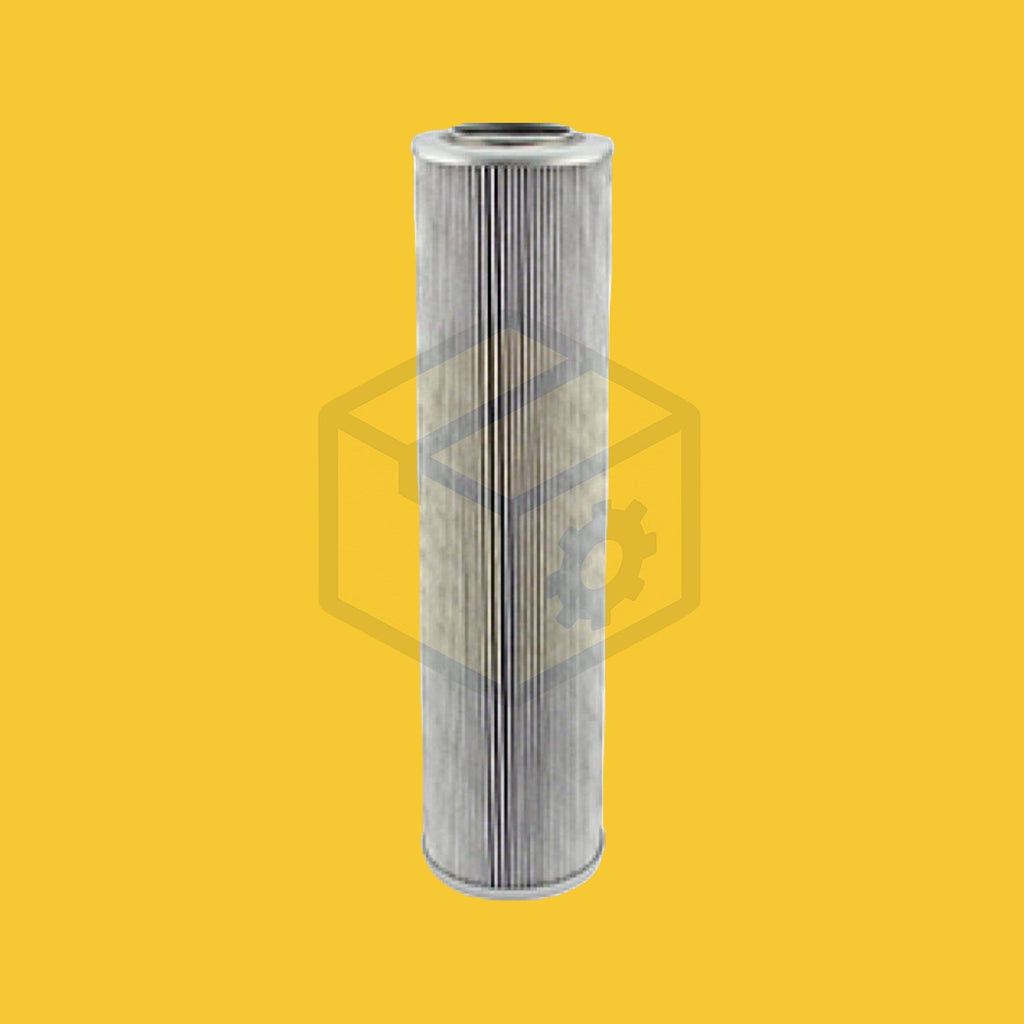

This filter is manufactured to match the dimensional and performance specifications of many Hydac hydraulic filter elements. Compare the total height (428 mm), outer diameter (96 mm) and inner diameter (56.1 mm) with your existing filter. If the dimensions and flow direction (out-to-in) match, installation is a direct drop-in.
It uses inorganic microfibre media with a 5-micron absolute rating. This media type is chosen for its high particle removal efficiency and durability in hydraulic fluids, helping to keep oil clean and extend component life.
The critical interfacing dimensions are the largest inner diameter of 56.1 mm and the largest outer diameter of 96 mm, along with a total height of 428 mm. As long as your housing matches these sizes, the filter will fit securely without adapters.
No, it is an aftermarket replacement part. This filter is built to align with the original equipment specifications, providing a comparable level of filtration at a more cost-effective price. It is not manufactured by or affiliated with Hydac.
Replacement intervals depend on your equipment manufacturer’s recommendations and operating conditions. When you do replace the element, installation is straightforward, simply remove the old filter, clean the housing, fit the new this filter, and re-assemble. No special tools are required.
We provide a 30-day money-back guarantee and a price-beat guarantee on all our aftermarket filters. Orders are shipped worldwide with tracking, so you can order with confidence knowing your purchase is protected.
