| Filtration Media | Inorganic Microfibers 25 µm |
| Media type | Inorganic Microfibers |
| Filtration Rating | 25 µm |
| Flow direction | Out-In |
| Total Height | 257 mm (10 1/8") |
| Largest Inner Diameter | 47.5 mm (1 7/8") |
| Largest Outer Diameter | 83 mm (3 9/32") |
| Stat. HS-Code | 84149000 |
| Country of Manufacture | China |
| Brand | Code |
|---|---|
| Airfil | AFKOVL29425 |
| Behringer | BE5001025A |
| Comex | M0030DN2025 |
| Comex | M0030DN25 |
| Donaldson | P174297 |
| Fai Filtri | CF-130-A25-NA |
| Finn Filter | FC5013F025BS |
| Finn Filter | FFKPVL1501325ABS |
| Fleetguard | ST1505 |
| Hy-Pro | HP800L1025M |
| Hydac | 1268886 |
| Hydac | 2100D20BN |
| Hydac | 2300D20BN |
| Internormen | 04PI413025VG16EO |
| Internormen | 300822 |
| Internormen | 301053 |
| Mahle | 7680481 |
| Mahle | 9640513152 |

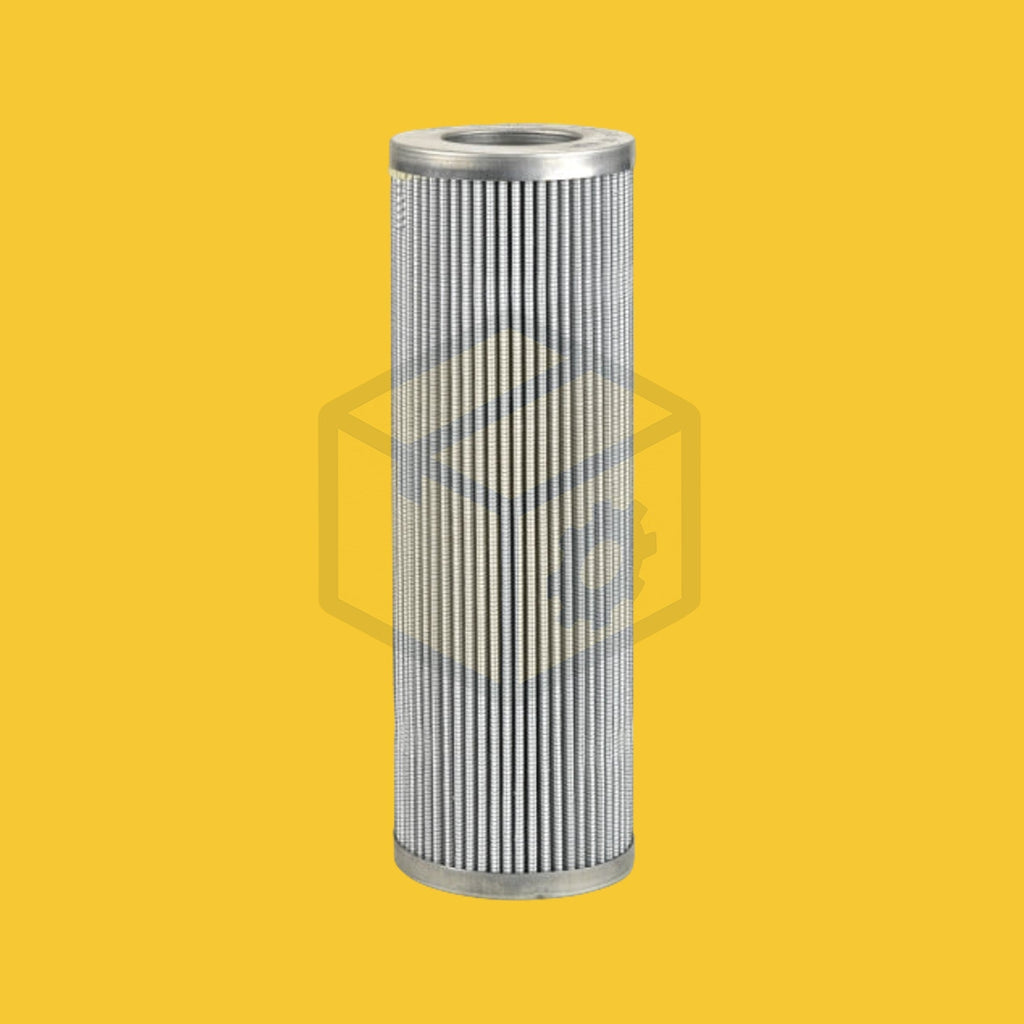

| Mahle | PI4130SMX25 |
| Mann-Filter / Mann & Hummel | HD9522 |
| Oxfil | HF.7490 |
| Pall | HC2235FKT10H |
| Parker Parfit | 935243 |
| Parker Parfit | FC5013Q020BS |
| Parker Parfit | GO2864 |
| Parker Parfit | PR2864 |
| PTI | PG080JH |
| Spare Part Mart | SPM-HYD-1216 |
| Stauff | SL090E20B |
| Woodgate | WGH9962 |
Found this part cheaper somewhere else? Send us the listing and we will beat it by 5% under our Price Beat Guarantee. Every order is also covered by our 30 day money back guarantee.
Continuous-Duty Hydraulic Systems
For machinery operating around the clock, the 25 µm inorganic microfibers media provides consistent filtration efficiency, reducing wear on pumps and valves. This helps extend maintenance intervals and minimize unplanned downtime.
High-Contamination Environments
In dusty or debris-laden settings such as construction sites or mines, this filter's robust media captures fine particles that can cause abrasive damage. Its out-in flow design ensures effective contaminant retention even under heavy load.
Inventory Consolidation for Multi-Brand Fleets
When maintaining equipment from different manufacturers that share a common filter size, this filter simplifies stock management. One part number replaces elements from Hydac, Donaldson, and others, reducing inventory complexity.
Check your existing filter's dimensions: total height 257 mm, largest inner diameter 47.5 mm, largest outer diameter 83 mm, and out-in flow direction. If these match, this filter is a direct replacement.
This filter uses inorganic microfibers media with a 25 µm filtration rating, suitable for standard hydraulic systems requiring fine particle removal.
The filter has a largest inner diameter of 47.5 mm and largest outer diameter of 83 mm. Ensure your housing accepts these dimensions; thread type is not specified but is standard for this size class.
Yes, it is built to match OEM specifications using inorganic microfibers media. It offers equivalent performance at a lower cost, though it is not an OEM part.
Installation is straightforward: remove the old element, clean the housing, lubricate the new filter's gasket, insert it, and tighten the cover. Ensure flow direction is out-in.
