| Part Type | Hydraulic and lube oil filter element |
| Replaces | Pall HC8400FCS26H |
| Filtration Media | Pleated glass fibre |
| Filtration Rating | 12 µm(c), Pall S grade |
| Flow Direction | Out-In |
| Seal Material | Nitrile (NBR), Pall H seal code |
| Largest Outer Diameter | 152 mm (5 31/32") |
| Largest Inner Diameter | 83.6 mm (3 9/32") |
| Total Height | 648 mm (25 1/2") |
| Nominal Length | 26 in |
| End Configuration | Double open end |
| Collapse Rating | 10 bar (145 psid) |
| Stat. HS-Code | 842129 |
| Brand | Code |
|---|---|
| Pall | HC8400FCS26H |
| Spare Part Mart | SPM-HYD-2227 |
Price Beat Guarantee: We've crawled the internet to guarantee you're getting the best price. Here's what competitors are selling this exact filter for:
You're saving approximately 20% on Pall HC8400FCS26H buying from SPM.

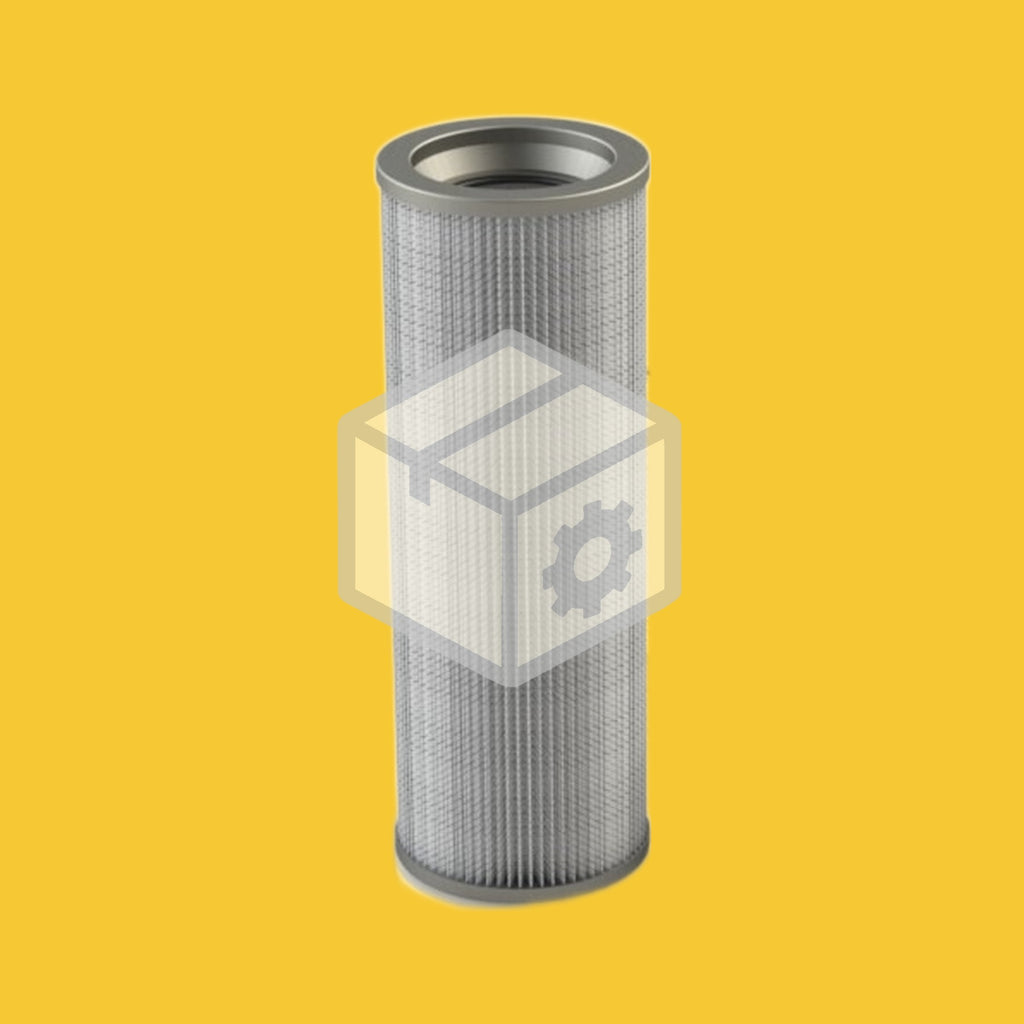

This element replaces Pall HC8400FCS26H. It fits any filter housing built to take that element: 152 mm outside diameter, 83.6 mm bore, 648 mm long, double open end, with nitrile (NBR) seals.
To check, read the element number on the old element or on the housing data plate. The number after the HC code is the length in inches and the last letter is the seal (H nitrile, Z fluorocarbon). Order the same length and seal letter as the element you are replacing.
Steel mill and rolling mill hydraulics
Rolling mill AGC, coiler and descaler hydraulic stations run large Pall return and pressure filters. Spare elements on the shelf let the change happen as soon as the indicator trips.
Power station lube and control oil
Turbine lube oil skids, boiler feed pump lube systems and control oil units use Pall housings. Holding spares means the element can be changed at the next planned outage.
Wind turbine gearbox and hydraulic stations
Gearbox lube and pitch hydraulic stations need clean oil to protect bearings and valves. Changing elements on schedule saves an unplanned climb.
Industrial power units and presses
Presses, injection moulding lines and test rigs with big tanks use these elements on return and off-line filtration at high flow with low pressure drop.
No. It is an aftermarket element made to the dimensions and filtration grade of the Pall HC8400FCS26H. It is not made by or affiliated with Pall, and the Pall part number is used only to show what it replaces.
Yes if your housing takes the Pall HC8400FCS26H. Check the old element: 152 mm outside diameter, 83.6 mm bore and 648 mm overall length. It is double open ended, so check that your housing uses the same style.
It is the particle size the media captures at a beta ratio of 1000 or more under the ISO 16889 multipass test, so it removes at least 99.9% of particles of 12 µm and larger on each pass.
H means nitrile (NBR) seals. The Z (HC8400FCS26Z) version of the same element has fluorocarbon seals; make sure you order the seal material your fluid needs.
Change it when the housing's differential pressure indicator shows the element is loaded, or at the interval in your maintenance plan, whichever comes first. A loaded element that goes into bypass lets dirty oil through.
Yes, we ship worldwide. Shipping is calculated at checkout, and every order is covered by our 30 day money back guarantee and price beat guarantee.
