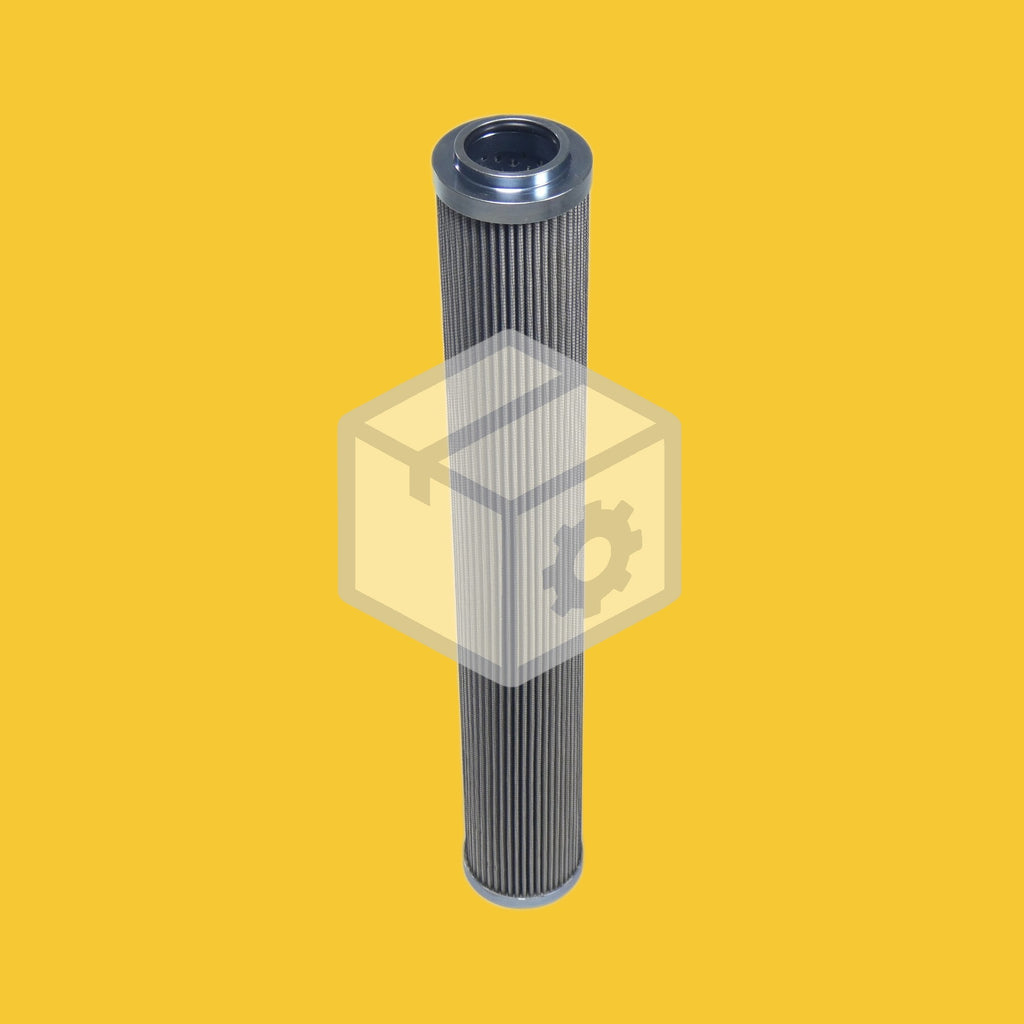

| Part Type | Pressure filter element |
| Replaces | Rexroth R900203454 |
| Filtration Media | Pleated glass fibre |
| Filtration Rating | 3 µm, beta 1000 (ISO 16889) |
| Flow Direction | Out-In |
| Seal Material | Fluorocarbon (FKM / Viton) |
| Largest Outer Diameter | 60 mm (2 3/8") |
| Largest Inner Diameter | 35.3 mm (1 3/8") |
| Total Height | 415 mm (16 5/16") |
| Collapse Rating | 210 bar (3,045 psid), high collapse, no bypass |
| Same Body As | Internormen 01.E450.3VG.HR.E (size 450, high collapse) |
| Stat. HS-Code | 842129 |
| Brand | Code |
|---|---|
| Rexroth | R900203454 |
| Spare Part Mart | SPM-HYD-2587 |
Price Beat Guarantee: We've crawled the internet to guarantee you're getting the best price. Here's what competitors are selling this exact filter for:
You're saving 20-40% on Rexroth R900203454 buying from SPM.
Industrial power units
Rexroth filters sit on the power units of presses, machine tools, plastics machines and test rigs. A fresh element keeps servo and proportional valves at the cleanliness they were designed for.
Mobile and construction machinery
Rexroth hydraulics drive tunnel boring machines, concrete pumps and cranes, where a spare element on site saves a breakdown call.
Steel, paper and energy plants
Rolling mill, paper machine and turbine control oil systems often run Rexroth or Rexroth sized filters. Holding spares means the change can happen as soon as the clogging indicator trips.
Planned maintenance stock
Sites with several machines on the same element can hold stock for scheduled changes at a lower price than buying OEM every time.
No. It is an aftermarket element made to the dimensions and filtration grade of the Rexroth R900203454. It is not made by or affiliated with Rexroth (Bosch Rexroth), and their part numbers are used only to show what it replaces.
Yes if your filter takes the Rexroth R900203454. Check the old element: 60 mm outside diameter, 35.3 mm bore and 415 mm overall length.
The element has a reinforced core rated to 210 bar (3,045 psid) differential, so it will not fold if it clogs in a pressure filter that has no bypass valve. Fit a high collapse element wherever the original was one.
Fluorocarbon (FKM / Viton) O-ring seals. They suit mineral oil, synthetic and most fire resistant fluids and higher oil temperatures.
Change it when the filter's clogging indicator shows the element is loaded, or at the interval in your maintenance plan, whichever comes first.
Yes, we ship worldwide. Shipping is calculated at checkout, and every order is covered by our 30 day money back guarantee and price beat guarantee.
