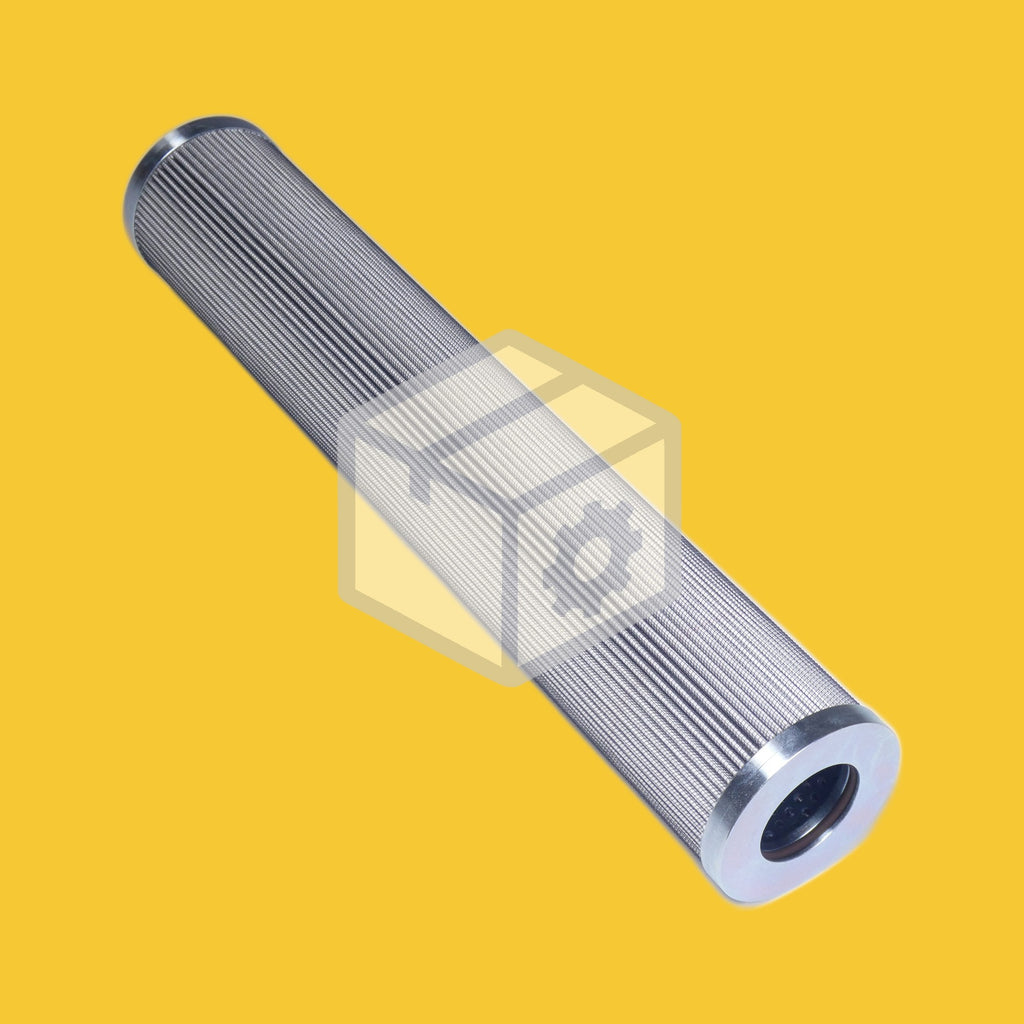

| Part Type | High pressure filter element |
| Replaces | Schroeder SBF965116Z3B / Pall HC9651FDP16H |
| Filtration Media | Pleated glass fibre |
| Filtration Rating | 3 µm, beta 1000 (ISO 16889) |
| Flow Direction | Out-In |
| Seal Material | Nitrile (NBR) |
| Largest Outer Diameter | 78 mm (3 1/16") |
| Largest Inner Diameter | 42.7 mm (1 11/16") |
| Total Height | 429 mm (16 7/8") |
| Collapse Rating | 210 bar (3,045 psid), high collapse |
| Construction | Double open end |
| Stat. HS-Code | 842129 |
| Brand | Code |
|---|---|
| Pall | HC9651FDP16H |
| Schroeder | SBF965116Z3B |
| Spare Part Mart | SPM-HYD-2594 |
Price Beat Guarantee: We've crawled the internet to guarantee you're getting the best price. Here's what competitors are selling this exact filter for:
You're saving 20-65% on Schroeder SBF965116Z3B buying from SPM.
Industrial power units
Schroeder and Pall filters sit on the power units of presses, machine tools, plastics machines and test rigs. A fresh element keeps valves and pumps at the cleanliness they were designed for.
Mobile and off highway machinery
The same element sizes are used on mining, forestry and construction machines, where a spare on site saves a breakdown call.
Steel, paper and energy plants
Hydraulic and lube oil systems in mills and power plants use these elements in duplex filters, so the change can happen as soon as the indicator trips.
Planned maintenance stock
Sites with several machines on the same element can hold stock for scheduled changes at a lower price than buying OEM every time.
No. It is an aftermarket element made to the dimensions and filtration grade of the Schroeder SBF965116Z3B / Pall HC9651FDP16H. It is not made by or affiliated with Schroeder Industries or Pall, and their part numbers are used only to show what it replaces.
Yes if your filter takes the Schroeder SBF965116Z3B or Pall HC9651FDP16H. Check the old element: 78 mm outside diameter, 42.7 mm bore and 429 mm overall length.
The element has a reinforced core rated to 210 bar (3,045 psid) differential, so it will not fold if it clogs in a pressure filter that has no bypass valve.
In Pall's code, 9651 is the element series, DP is the 3 µm high collapse glass fibre grade, 16 is the nominal length in inches and H is nitrile seals.
Nitrile (NBR) O-rings, shown by the B at the end of the Schroeder number and the H at the end of the Pall number. They suit mineral oil based hydraulic and lube oils. Ask us before ordering if your system runs a fire resistant or synthetic ester fluid.
Yes, we ship worldwide. Shipping is calculated at checkout, and every order is covered by our 30 day money back guarantee and price beat guarantee.
