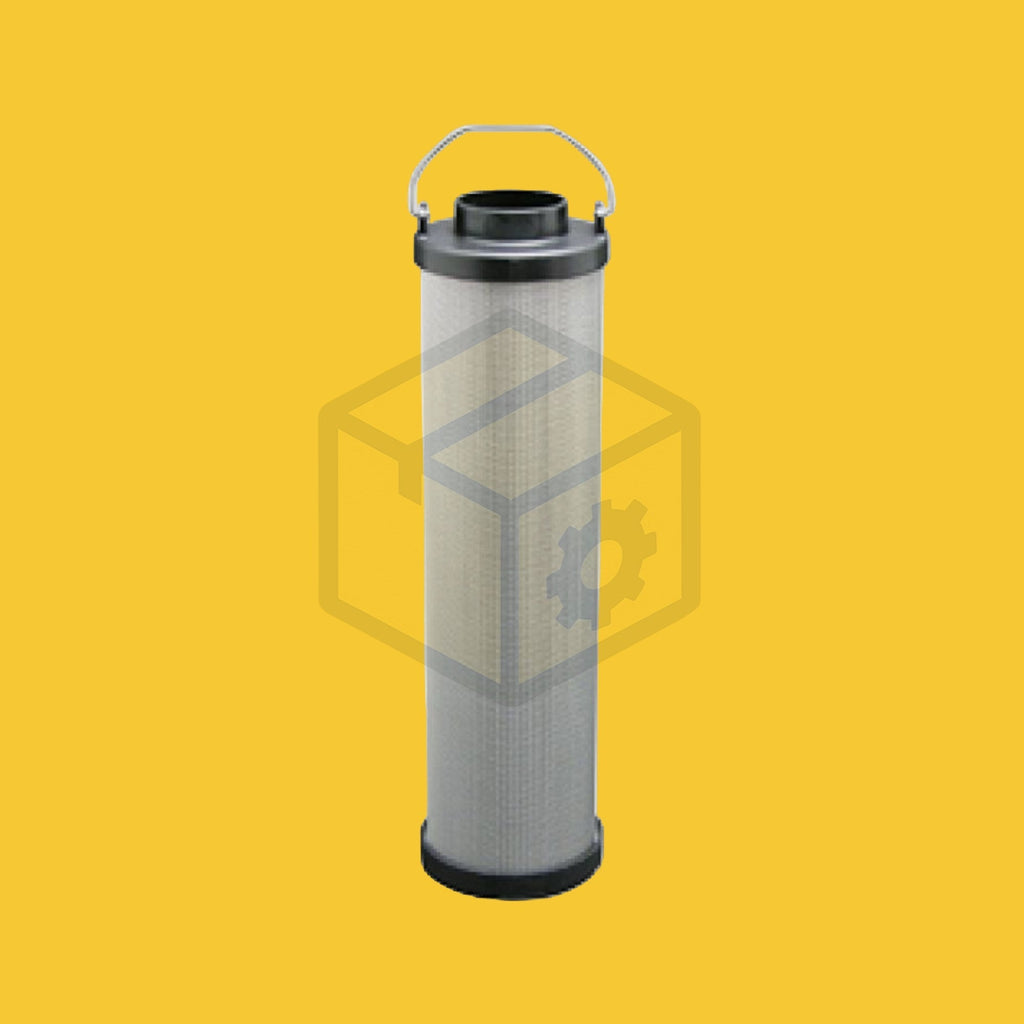

| Part Type | Hydraulic filter element |
| Replaces | Hydac 0165R010ON / Hydac 1263581 |
| Filtration Media | Pleated glass fibre |
| Filtration Rating | 10 µm |
| Flow Direction | Out-In |
| Seal Material | Nitrile (NBR) |
| Largest Outer Diameter | 60 mm (2 3/8") |
| Largest Inner Diameter | 34.2 mm (1 11/32") |
| Total Height | 228 mm (8 31/32") |
| Construction | Single open end, plastic end caps with lifting handle |
| Bypass Valve | 3 bar, built into the element |
| Collapse Rating | 20 bar (290 PSI) |
| Stat. HS-Code | 842129 |
| Brand | Code |
|---|---|
| Hydac | 0165R010ON |
| Hydac | 1263581 |
| Spare Part Mart | SPM-HYD-3140 |
We check what other aftermarket sellers charge for this same part. Their prices on the date we checked:
| Seller | Price | Checked |
|---|---|---|
| FilterFinder Online | USD 77.00 | 8 Oct 2026 |
| Hydrafil | USD 102.95 | 8 Oct 2026 |
| Spare Part Mart | USD 61.60 | Today |
Our price of USD 61.60 is 20% to 40% less than these sellers.
Found this part cheaper somewhere else? Send us the listing and we will beat it by 5% under our Price Beat Guarantee. Every order is also covered by our 30 day money back guarantee.
Bystronic press brakes
The hydraulic unit of a Bystronic press brake runs both main cylinders through proportional valves. Clean oil keeps the ram parallel and the bending angle repeatable, so the element is changed at every service.
Bending shops with several machines
Shops running more than one Xpert can keep elements on the shelf and change them at the planned service instead of waiting for a dealer delivery.
After a valve or pump repair
Fit a new element after any hydraulic repair to catch the debris the work leaves in the system.
Industrial power units
The same element size is used on other machine tool and press hydraulic units fitted with the same filter housing.
No. It is an aftermarket element made to the dimensions and filtration grade of the Hydac 0165R010ON / Hydac 1263581. It is not made by or affiliated with Bystronic or the filter maker, and the part number is used only to show what it replaces.
Yes if your filter takes the Hydac 0165R010ON / Hydac 1263581. Check the old element: 60 mm outside diameter, 34.2 mm bore and 228 mm overall length.
The Xpert Pro 320. Bystronic's box carries the Hydac number 0165 R 010 ON (1263581). Xpert Pro 150 to 250 machines take the larger 0240 R element.
Nitrile (NBR) seals, which suit mineral oil based hydraulic, lube and turbine oils. Ask us before ordering if your system runs a fire resistant or synthetic ester fluid.
Change it when the filter's clogging indicator shows the element is loaded, or at the interval in your maintenance plan, whichever comes first.
Yes, we ship worldwide. Shipping is calculated at checkout, and every order is covered by our 30 day money back guarantee and price beat guarantee.
