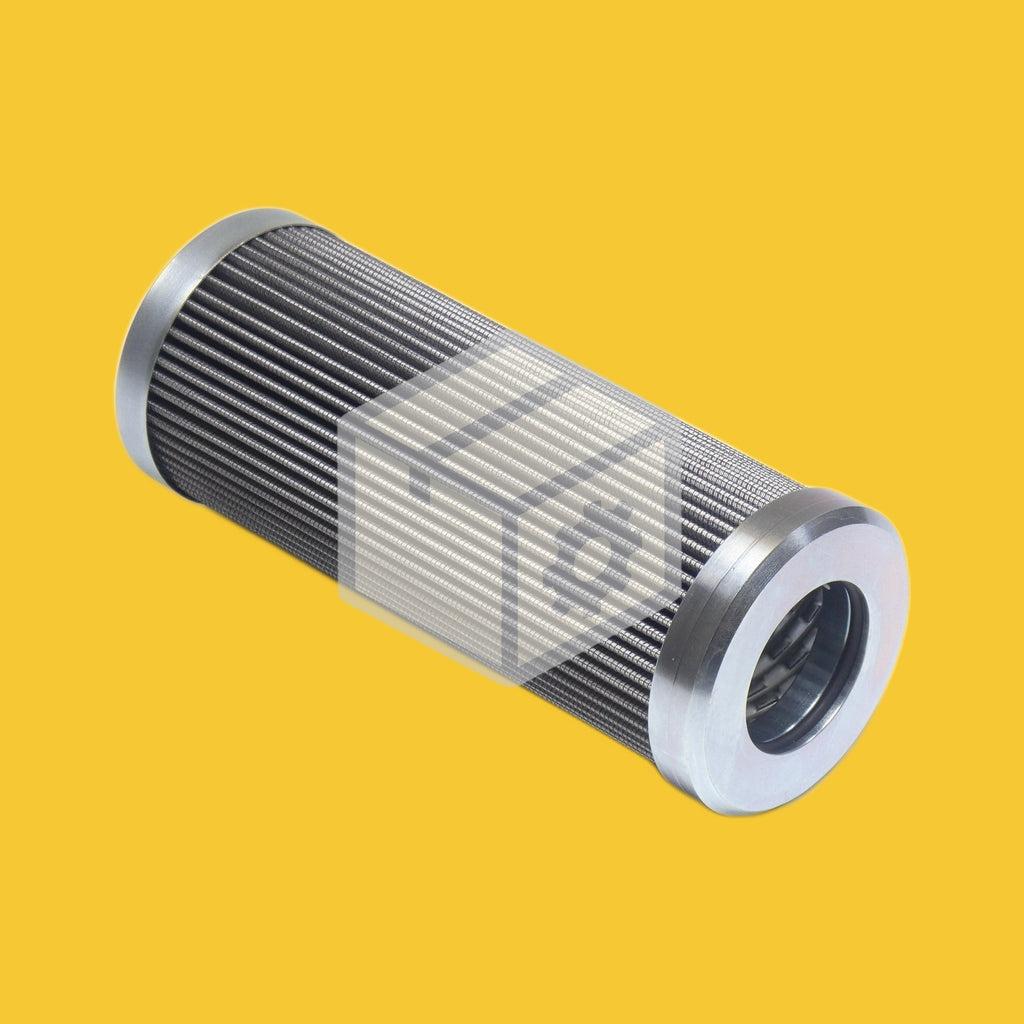

| Part Type | Line filter element |
| Replaces | Taisei Kogyo P-G-UL-12A-50UW |
| Filtration Media | Pleated stainless steel wire mesh |
| Filtration Rating | 50 µm, Taisei 50UW wire mesh grade |
| Flow Direction | Out-In |
| Seal Material | Fluorocarbon (FKM / Viton) |
| Largest Outer Diameter | 83.5 mm (3 9/32") |
| Largest Inner Diameter | 45.7 mm (1 13/16") |
| Total Height | 204 mm (8 1/32") |
| Housing Size | G-UL-12A |
| Stat. HS-Code | 842129 |
| Brand | Code |
|---|---|
| Spare Part Mart | SPM-HYD-2375 |
| Taisei Kogyo | P-G-UL-12A-50UW |
Price Beat Guarantee: We've crawled the internet to guarantee you're getting the best price. Here's what competitors are selling this exact filter for:
You're saving 20-33% on Taisei Kogyo P-G-UL-12A-50UW buying from SPM.
Return and transfer lines
The 50 µm mesh grade catches wear debris and scale on return and transfer lines without the pressure drop of a fine paper element.
Water glycol and synthetic fluids
Stainless mesh with fluorocarbon seals suits fire resistant and synthetic fluids that attack paper media and nitrile seals.
Machine tool and press hydraulics
Taisei G-UL filters are fitted to power units on Japanese machine tools and presses. A spare element means the change can happen as soon as the gauge shows it is loaded.
Cleanable protection
Mesh elements can be washed and refitted, which suits plants that clean elements between changes and keep one spare in rotation.
No. It is an aftermarket element made to the dimensions and grade of the Taisei Kogyo P-G-UL-12A-50UW. It is not made by or affiliated with Taisei Kogyo, and the Taisei part number is used only to show what it replaces.
Yes if your filter takes the Taisei Kogyo P-G-UL-12A-50UW, as in the G-UL-12A line filter. Check the old element: 83.5 mm outside diameter, 45.7 mm bore and 204 mm overall length.
Taisei writes the rating in µm followed by U for paper or UW for wire mesh. 50UW is a 50 µm stainless steel wire mesh element.
Yes. Stainless mesh elements can be washed in clean solvent and blown out from the inside, then refitted if the mesh is undamaged. Replace it once it no longer cleans up or the pleats are damaged.
Fluorocarbon (FKM / Viton) O-rings, which suit mineral oil, synthetic and most fire resistant fluids and higher oil temperatures.
