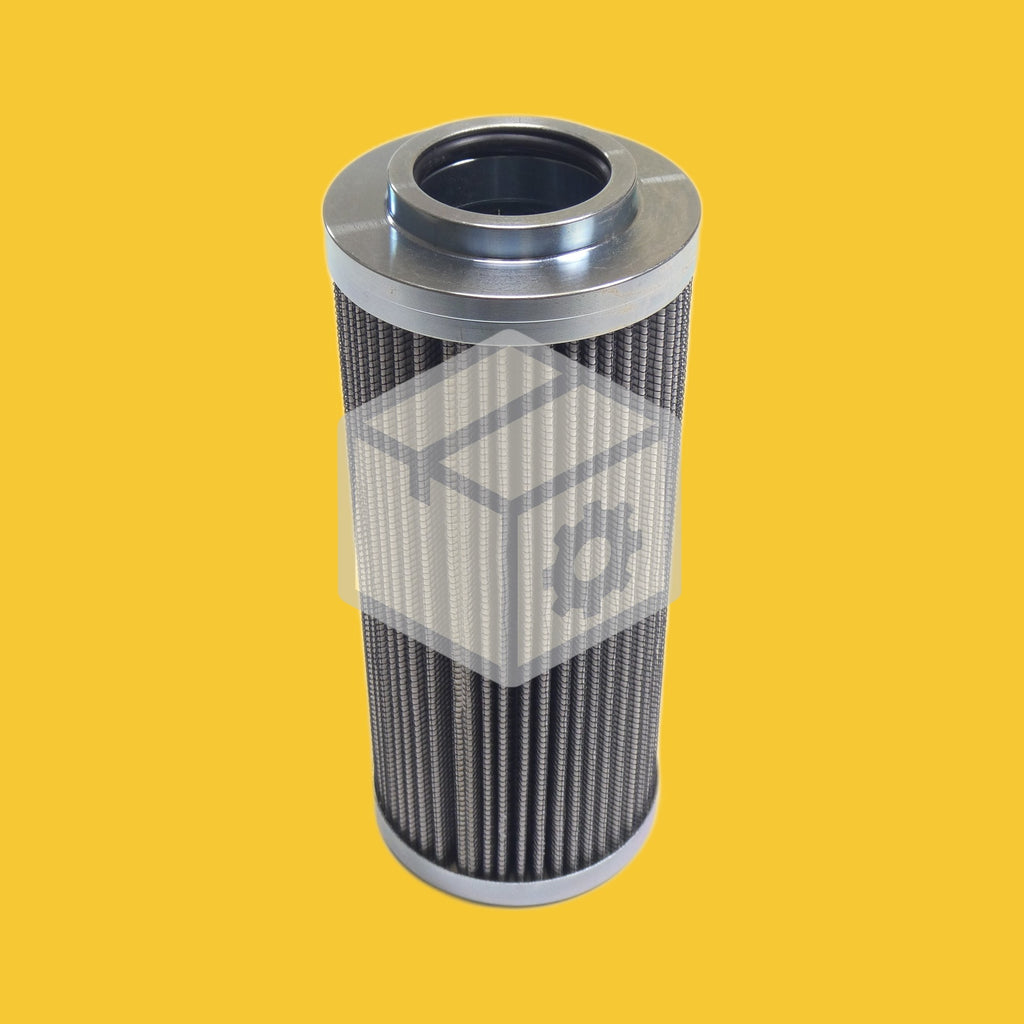

| Part Type | Line filter element |
| Replaces | Taisei Kogyo P-UL-06A-10U / Taisei Kogyo P-UL-08A-10U |
| Filtration Media | Pleated filter paper |
| Filtration Rating | 10 µm, Taisei 10U paper grade |
| Flow Direction | Out-In |
| Seal Material | Nitrile (NBR) |
| Largest Outer Diameter | 63.8 mm (2 1/2") |
| Largest Inner Diameter | 32.8 mm (1 9/32") |
| Total Height | 153.4 mm (6 1/32") |
| Housing Size | UL / UM / UH, 06 and 08 port sizes (one element serves both) |
| Stat. HS-Code | 842129 |
| Brand | Code |
|---|---|
| Spare Part Mart | SPM-HYD-2373 |
| Taisei Kogyo | P-UL-06A-10U |
| Taisei Kogyo | P-UL-08A-10U |
We check what other aftermarket sellers charge for this same part. Their prices on the date we checked:
| Seller | Price | Checked |
|---|---|---|
| Hydrafil | USD 107.95 | 6 Oct 2026 |
| Spare Part Mart | USD 85.56 | Today |
Our price of USD 85.56 is approximately 21% less than this seller.
Found this part cheaper somewhere else? Send us the listing and we will beat it by 5% under our Price Beat Guarantee. Every order is also covered by our 30 day money back guarantee.
Machine tool hydraulics
Taisei Kogyo line filters are fitted to the hydraulic units of Japanese lathes, machining centres and grinders. The element keeps the valves and pump clean on machines that run every shift.
Injection moulding machines
Moulding machines from Japanese builders use Taisei UL and UM filters on the power unit. A spare element on the shelf lets the change happen at the next mould change.
Lubrication and coolant circuits
The same line filters sit on spindle lube and gearbox lubrication circuits, where a clean element protects bearings and gears.
Planned maintenance stock
Sites with several machines on the same filter size can hold elements for scheduled changes at a lower price than buying OEM every time.
No. It is an aftermarket element made to the dimensions and filtration grade of the Taisei Kogyo P-UL-06A-10U. It is not made by or affiliated with Taisei Kogyo, and the Taisei part numbers are used only to show what it replaces.
Yes if your filter takes the Taisei Kogyo P-UL-06A-10U (or the P-UL-08A-10U). Check the old element: 63.8 mm outside diameter, 32.8 mm bore and 153.4 mm overall length.
Taisei Kogyo puts P- in front of the filter model to mean the replacement element only. The filter housing carries the same number without the P.
Taisei Kogyo grades are written as the rating in µm followed by U for filter paper or UW for wire mesh. 10U is a 10 µm pleated paper element, the finer of the two standard paper grades, used where the circuit has proportional valves.
Change it when the filter's clogging indicator shows the element is loaded, or at the interval in your maintenance plan, whichever comes first.
