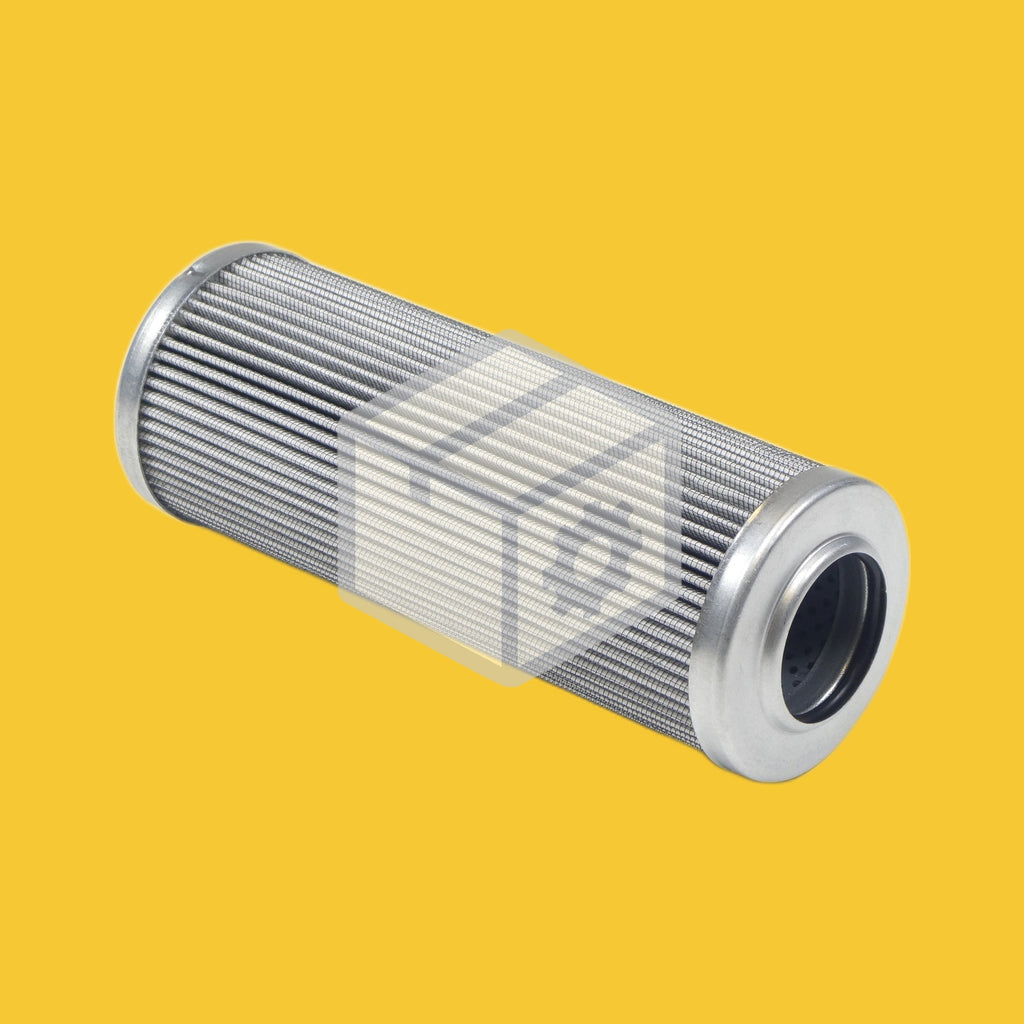

| Part Type | Filter element |
| Replaces | Sofima CCH802RD1 / Sofima CH802RD11 |
| Filtration Media | Pleated stainless steel wire mesh |
| Filtration Rating | 10 µm, stainless steel wire mesh |
| Flow Direction | Out-In |
| Seal Material | Fluorocarbon (FKM / Viton) |
| Largest Outer Diameter | 78.5 mm (3 3/32") |
| Largest Inner Diameter | 43.7 mm (1 23/32") |
| Total Height | 208.8 mm (8 7/32") |
| End Configuration | Single open end |
| Collapse Rating | 21 bar (305 psid) |
| Stat. HS-Code | 842129 |
| Brand | Code |
|---|---|
| Sofima | CCH802RD1 |
| Sofima | CH802RD11 |
| Spare Part Mart | SPM-HYD-2491 |
We check what other aftermarket sellers charge for this same part. Their prices on the date we checked:
| Seller | Price | Checked |
|---|---|---|
| SONA Filtration | USD 160.15 | 5 Oct 2026 |
| Filtrec D141T10A | USD 387.00 | 5 Oct 2026 |
| HiFi SH 630130 | USD 389.00 | 5 Oct 2026 |
| Spare Part Mart | USD 128.12 | Today |
Our price of USD 128.12 is 20% to 67% less than these sellers.
Found this part cheaper somewhere else? Send us the listing and we will beat it by 5% under our Price Beat Guarantee. Every order is also covered by our 30 day money back guarantee.
Pressure line protection
Sofima pressure filters sit after the pump to protect valves and actuators. A fresh element keeps the circuit at its target cleanliness code.
Industrial power units
Italian built presses, machine tools and plastics machines often carry Sofima filters on the power unit. Keeping a spare element means a change can happen at the next planned stop.
Mobile hydraulics
Sofima elements are fitted to agricultural and construction machines from Italian builders, on both pressure and return circuits.
Planned maintenance stock
Sites running several machines on the same filter can hold elements for scheduled changes at a lower price than buying OEM every time.
No. It is an aftermarket element made to the dimensions and filtration grade of the Sofima CCH802RD1. It is not made by or affiliated with Sofima or UFI, and the Sofima part number is used only to show what it replaces.
Yes if your filter takes the Sofima CCH802RD1. Check the old element: 78.5 mm outside diameter, 43.7 mm bore and 208.8 mm overall length.
The element is pleated stainless steel wire mesh rather than glass fibre, so it is used where coarse protection is needed and the element can be cleaned. Wash it in clean solvent, blow it out from the inside and refit it if the mesh is undamaged.
Fluorocarbon (FKM / Viton) O-rings, which suit mineral oil, synthetic and most fire resistant fluids and higher oil temperatures.
Change it when the filter's clogging indicator shows the element is loaded, or at the interval in your maintenance plan, whichever comes first.
Yes, we ship worldwide. Shipping is calculated at checkout, and every order is covered by our 30 day money back guarantee and price beat guarantee.
