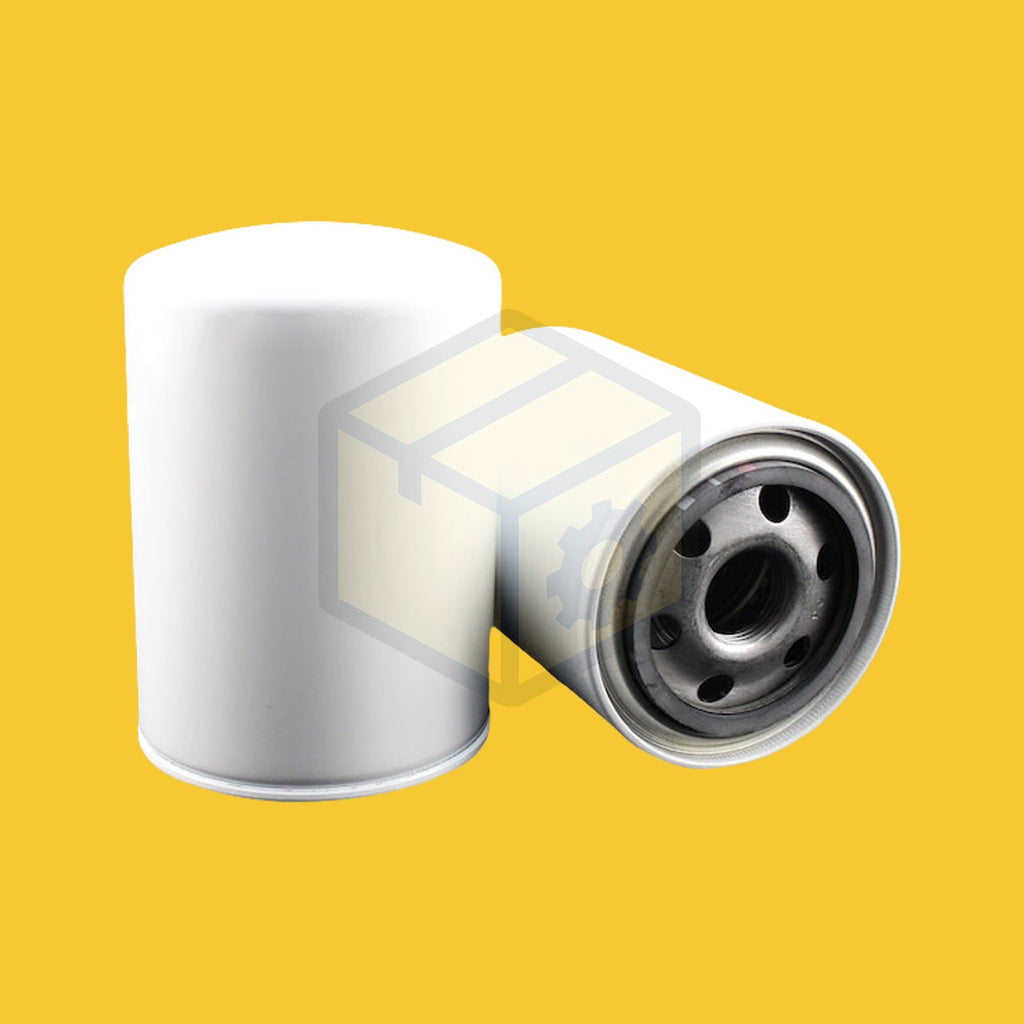

Ceccato 640509 Aftermarket Oil Filter (SPM-OIL-1010)

Ceccato 640509 Aftermarket Oil Filter

$8.74 USD

SKU: SPM-OIL-1010
Availability: in stock Many in stock Out of stock In-stock at manufacturer. Please add 5-10 days to shipping time
Weight: 0.37 kg (0.82 lb)

Keep a spare: buy 2 and the second one is 5% off ($8.30)

Universal Filter Strap Wrench for Oil, Fuel a...: ~~$9.59~~ $9.12 with this part

Copper Sealing Washer Assortment Kit, M5 to M...: ~~$8.63~~ $8.20 with this part

Members earn 8 points on this order. Join today to earn 200 points off your first order.

Product Type: Oil Filter
Barcode:

We ship worldwide

Economy and Express options at checkout

Need help?

Money back guarantee

We provide a 30 day 100% money back guarantee

Customer support

Dedicated support team ready to help

Ceccato 640509, direct aftermarket replacement. This filter is an aftermarket oil filter designed for rotary screw air compressors. It uses 25 µm impregnated paper media to capture particulates and protect downstream components. With a 3/4 inch UNF female bottom thread, it fits a wide range of compressors from Abac, Atlas Copco, Ingersoll Rand, and many others. This direct replacement filter offers a cost-effective alternative without compromising performance. Technical properties & cross references

Specifications

Burst Pressure	20 bar (290 PSI)
Element Collapse pressure	5 bar (73 PSI)
Filtration Media	Impregnated Paper 25 µm
Media type	Impregnated Paper
Filtration Rating	25 µm
Total Height	123 mm (4 27/32")
Thread	UNF 3/4 inch Female Bottom 16
Type	UNF
Thread Size	3/4 inch
Orientation	Female
Position	Bottom
Bypass Valve Opening Pressure	1 bar (15 PSI)
Product Net Weight	0.37 kg (0.82 lbs)
Working Pressure	12 bar (174 PSI)
Outer Diameter	75.5 mm (2 31/32")
Stat. HS-Code	84149000
Country of Manufacture	China

Compatible equipment

Abac

FORMULA 5.5 from 2011 ZENITH 04 SPINN 7.5 from 2011 ZENITH 03 GENESIS 5.5 SPINN 11 from 2011 VT 10 CMP FORMULA 7.5 GENESIS 11 from 2011 SPINN 5.5 GENESIS 5.5 from 2011 MICRON 5.5 ZENITH 10-500 MICRON 3.0 ZENITH 10 SMART 10 (8-10 bar)SPINN 2.2 FORMULA 7.5 from 2011 ZENITH 07-270 ZENITH 05-270 FORMULA 15 from 2011 FORMULA 15 BA 77 from 2011 ZENITH 04-270 FORMULA 5.5 10/13 bar from 2011 ZENITH 03-270 SPINN 5.5 from 2011 VT 7.5 CMP GENESIS 10 GENESIS 15 from 2011 SPINN 7.5 GENESIS 7.5 from 2011 FORMULA 5.5 MICRON 4.0 ZENITH 10-270 SMART 7.5 (8-10 bar)SPINN 4.0 MICRON 2.2 ZENITH 07-500 GENESIS 7.5 SPINN 3.0 FORMULA 7.5 10/13 bar from 2011 ZENITH 07 ZENITH 05 FORMULA 11 from 2011

Alup

SCK 4 from s/n CAI064290 SCK 9 from s/n CAI064290 SCK 7 from s/n CAI064290 SCK 5 from s/n CAI064290 SCK 10 from s/n CAI270445 ALLEGRO 8 C55 Air End s/n CAI876886 ALLEGRO 11 C55 Air End from s/n CAI876886 SCK 3 from s/n CAI064290 SCK 8 from s/n CAI270445 SCK 6 from s/n CAI270445 SCK 15 from s/n CAI270445 ALLEGRO 8 from s/n CAI270445 ALLEGRO 11 from s/n CAI270445 ALLEGRO 14 C55 Air End from s/n CAI876886

Atlas Copco

GA 7 GA 5 GX 7 up to s/n 619999 GA 11 VSD from s/n AII 140000 GX 11 up to s/n 619999 GA 7 C from s/n 145000 GA 11 C fom s/n API 100000 GX 5 C GX 4 GX 2 GA 5 from s/n 145000 GA 10 GA 7 VSD from s/n AII 140000 GX 5 up to s/n 619999 GN 7.2 GA 5 C from s/n 145000 GA 10 from s/n 145000 GA 7 from s/n 145000 GX 5-11C GX 3

Balma

GALAXY 03 MODULO 5.5 BRIO 5.5 OASIS 10 GALAXY 05-270 GALAXY 10-270 GALAXY 07-270 GALAXY 04-270 GALAXY 07-500 GALAXY 03-270 MODULO 7.5 BRIO 7.5 OASIS 7.5 GALAXY 10-500 GALAXY 07 GALAXY 05 GALAXY 10 GALAXY 04

Ceccato

CSM 7.5 MAXI MSM 4 CSM 5.5 CSM 3 MSM 15 CSB 15 CSM 20 CSA 5.5 CSM 10 TLE 30 CSA 20 RLI 20 CSA 15 RLC 7.5 RLE 20 RLI 7.5 MSM 3 RLC 10 RLC 20 RLI 10 CRA 5.5 mod 7430 MSM 5.5 CSM 7.5 CSM 4 MSM 7.5 CSB 20 MSM 11 CSA 7.5 CSM 15 CSA 20 Inverter CRA 10 mod 7432 CSA 15 Inverter RLI 11 CSA 10 RLC 5.5 RLE 15 RLI 5.5 MSM 2.2 CRA 7.5 mod 7431 RLC 15

Chicago Pneumatic

CPVS D 20 (15 kw)CPVS D 10 (7.5 kw)CPN 5 CPN 15 CPN 10 CPVS D 15 (11 kw)CPN 7.5 CPN 3

Compair-Demag

C 42 C 35 C 50 C 38 C 30

DARI

DRK SD 10 DRK SD 7

Fiac

TK 10 Old V 15 Old TK 7 Old AIRBLOCK 10-15 V 7 Old AX 15 V 10 Old TK 15 Old

Fini

CUBE 10 ROTAR CUBE 10 CUBE 7 ROTAR CUBE 7 BUILDAIR 500

Ingersoll Rand

HP 95 up to s/n 313204 P 110 up to s/n 313204 HP 140 from s/n 415260 P 90 up to s/n 210673 P 90 from s/n 210674 P 110 from s/n 313205 HP 95 from s/n 313205 P 260 from s/n 512250 P 150 from s/n 4022900 P 130 up to s/n 313204 HP 200 from s/n 512250 7/51 from s/n 415260 P 101 up to s/n 210673 P 130 from s/n 313205 P 101 from s/n 210674 P 180 from s/n 415260

La Padana

SPRINTAIR SAT 7 SPRINTAIR SAT 10 ROTOR 1000 SPRINTAIR SAT 5 SA 4 - 150 L MX 1500

Mark

MSB 11 RM 4 RSA 100 DS from 1991 RFC 5 MSA 5.5 RMB 11 RF 7 up to 1993 CSM 7.5 MSA 15 INVERTER RM 11 MSA 11 INVERTER RF 20 up to 1987 CSM 4 RF 20 from 1995 RFC 15 TS 15 RF 10 from 1995 MSM 7.5 RF 5 from 1994 RF 15 up to 1994 TS 5 MSM 11 T 10 SE 100 dry MSM 5.5 CSM 15 RT 10 MSM 3 RSA 100 DS RSA 150 DS from 1988 up to 1990 MSB 15 RM 5.5 RSA 150 D2PS RFC 7 MSA 7.5 RMB 15 RFC 10 MSA 4 RM 15 CSM 5.5 MSA 15 RF 5 up to 1993 RF 25 from 1995 RFC 20 MSA 11 RF 10 up to 1994 CSM 3 RF 7 from 1994 RF 20 from 1988 up to 1994 T 15 TS 7 MSM 15 TS 10 RF 15 from 1995 TS 20 CSM 20 RT 15 MSM 4 RSA 75 CSM 10 RSA 200 DS MSM 2.2 RM 7.5 RSA 150 D2PS from 1988 up to 1990

PUSKA

CSA 5.5/10 RLE 15 PKM 15

Worthington

RLR ROLLAIR 1900 from 2005 RLR ROLLAIR 700 from 2003 RLR ROLLAIR 1400 from 2005 RLR ROLLAIR 300 from 2003 RLR ROLLAIR 900 from 2005 RLR ROLLAIR 800 from 2003 RLR ROLLAIR 500 from 2003 RLR ROLLAIR 1400 from 2010 RLR ROLLAIR 400 from 2003

Wittig

ROL 2 ROL 6 ROL 3 ROL 8 ROL 5

Power System

NEWTON 1307 DARWIN 15 PS 1315 TRINITY 7.5 JUNIOR 5.5 PS 1307 JUNIOR 11 JUNIOR 3 TRINITY 5.5 PS 1011 INDUSTRIAL 5.5 JUNIOR 15 DV PS 1315 PM PASCAL 7.5 PS 1309 PM INDUSTRIAL 11 PASCAL 4 PS 1007 EDISON DV 1309 GTEC 7.5 from s/n 331108 PASCAL 2.2 DARWIN 5.5 PS 1004 GTEC 5.5 from s/n 331074 PASCAL 11 EDISON DV 1515 DARWIN 4 NEWTON 1311 DARWIN 2 GTEC 15 TRINITY 11 JUNIOR 7.5 TRINITY 7.5 from 2014 PS 1311 JUNIOR 4 TRINITY 5.5 from 2014 PS 1015 INDUSTRIAL 7.5 JUNIOR 2 PS 9 DV PS 1002 JUNIOR 15 PS 1315 DV INDUSTRIAL 15 PASCAL 5.5 PS 1309 DV EDISON DV 1315 PASCAL 3 PS 1005 DARWIN 7.5 GTEC 7.5 PASCAL 15 GTEC 11 DARWIN 11 PS 1003 NEWTON 1315 DARWIN 3 GTEC 5.5 TRINITY 15

Cross references

Brand	Code
Abac	2236105773
Abac	2236105973
Abac	2236106018
Abac	2236109228
Abac	6211472550
Abac	6211472600
Abac	6211472650
Abac	9056238
Abac	9056846
Abac	9056933
Abac	9057422
Adicomp	40200002
Alup	6211472650
Atlas Copco	1202849700
Atlas Copco	1513016000
Atlas Copco	1513033700
Atlas Copco	1513033701
Atlas Copco	2903033700
Atlas Copco	2903033701
Atlas Copco	6211472600
Atlas Copco	97076483
Atlas Copco	9707648300
Atlas Copco	9709000103
Balma	9056238
Balma	9056933
Balma	9057422
Belair	705640130
Ceccato	2200640509
Ceccato	2202726102
Ceccato	6211472550
Ceccato	6211472600
Ceccato	6211472650
Ceccato	640105
Ceccato	640130
Ceccato	640509
Ceccato	641123
Chicago Pneumatic	6211472550
Chicago Pneumatic	6211472650
Chinook	11702610
Compair-Demag	05500574
Compair-Demag	13234674
Compair-Demag	C16011251
Compair-Demag	C1601251
Compair-Demag	C16012701
DARI	048385000
Delsa	DS 1240
Ecoair	93578284
Ecoair	F402351072
Fai Filtri	CTT-012-1-1-10-C
Fai Filtri	CTT-012-1-3-P25-C
Fiac	7211141150
Fini	048385000
HiFi Filter	SH 62142
Ingersoll Rand	92793223
Ingersoll Rand	93578284
Ingersoll Rand	93613115
Josval	5802024
Kaeser	635090
Kaeser	695390
Kaeser	895390/A1
KSI	KS-O-1
La Padana	MF001007
Maco Meudon	527264
Maco Meudon	68527264
Maco Meudon	7144711
Mahle	OC47
Mann-Filter / Mann & Hummel	6740359266
Mann-Filter / Mann & Hummel	W 719/5
Mark	2200640509
Mark	2202726102
Mark	6211472550
Mark	6211472650
Mark	640130
Mark	640509
Noitech	NO 011380
Oxfil	OF.9019
Purolator	FCO213
Purolator	L20252
Purolator	L24466
Purolator	PC252
Purolator	PC253
Purolator	PER252
Purolator	PER4466
PUSKA	6211472550
PUSKA	6211472650
PUSKA	640509
Rotair	099005S
Sotras	SH 8113
Spare Part Mart	SPM-OIL-1010
Sullair	68527264
Worthington Creyssensac	2202726102
Worthington Creyssensac	6211472550
Worthington Creyssensac	6211488000
Worthington Creyssensac	6217900600

Price beat guarantee

We check what other aftermarket sellers charge for this same part. Their prices on the date we checked:

Seller	Price	Checked
The Air Market	USD 10.92	13 Oct 2026
Oxfil	USD 13.45	16 Oct 2026
eBay (6 aftermarket sellers)	USD 14.95 to 68.76	13 Oct 2026
Air Compressor Services	USD 44.00	13 Oct 2026
Compressor Parts Express	USD 49.70	13 Oct 2026
Spare Part Mart	USD 8.74	Today

Our price of USD 8.74 is 20% to 87% less than these sellers.

Found this part cheaper somewhere else? Send us the listing and we will beat it by 5% under our Price Beat Guarantee. Every order is also covered by our 30 day money back guarantee.

Use cases & applications

Continuous Duty Operations
In manufacturing plants where compressors run 24/7, the 20 bar burst pressure and 12 bar working pressure ensure reliable filtration during extended operation. The 1 bar bypass valve protects the system if the filter becomes clogged.

Dusty Environments
For compressors installed in construction sites or woodworking facilities, the 25 µm media traps airborne dust and debris. This extends the life of the compressor oil and reduces wear on moving parts.

Fleet Maintenance Consolidation
Workshops servicing multiple brands like Abac, Atlas Copco, and Ingersoll Rand can stock one filter for many models. This simplifies inventory management and reduces the risk of using the wrong filter.

High-Pressure Systems
In systems operating near 12 bar, such as those in automotive repair shops, the filter maintains structural integrity. The 5 bar collapse pressure ensures it won't fail under sudden pressure spikes.

Frequently asked questions

How do I confirm this filter fits my compressor?

Check if your compressor model is listed in the compatible machines list. If not, verify the thread size (3/4 inch UNF female bottom), outer diameter (75.5 mm), and total height (123 mm) match your original filter.

What is the filtration rating and media type?

This filter uses 25 micron impregnated paper media. It captures particles down to 25 µm in size, suitable for standard rotary screw compressor applications.

What are the thread and dimensional specifications?

The thread is 3/4 inch UNF female bottom. Outer diameter is 75.5 mm, total height 123 mm. Weight is 0.37 kg.

Is this an OEM or aftermarket filter?

This is an aftermarket direct replacement filter. It is built to the original dimensions and ratings and cross-references many brands, but is not manufactured by the original equipment maker.

How do I install and replace this filter?

Remove the old filter, clean the mounting surface, lubricate the new gasket with oil, hand tighten until the gasket contacts the base, then tighten an additional 3/4 turn. Do not overtighten.

What are the delivery and guarantee terms?

We offer a 30-day money-back guarantee and a price-beat guarantee. Worldwide shipping with tracking is available.

30-day money back guarantee Worldwide delivery Price beat guarantee

Images and data are used as a guide and are deemed reliable to Spare Part Mart. Product may appear differently (e.g. colour) but will be as per the specs above. All cross references are deemed reliable to our knowledge. We encourage you to double check before ordering.
