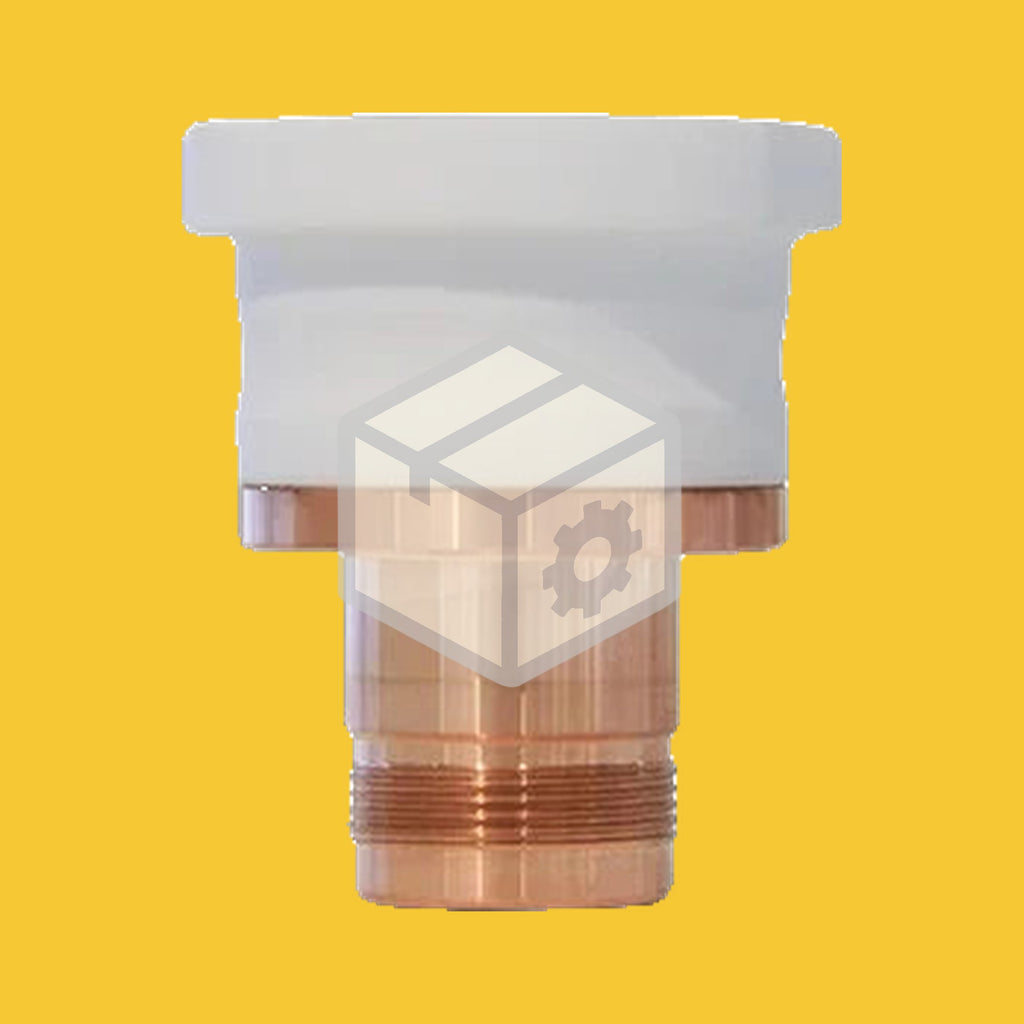

Aftermarket ceramic nozzle holder for Raytools fiber laser cutting heads. Replaces Raytools 120515089A: 41 mm across, 12.9 mm high, with an M11 x 0.75 brass thread for the M11 nozzle used on high power heads.
It sits between the head and the nozzle: it insulates the nozzle so the capacitive height sensor reads only the gap to the sheet, and it holds the nozzle in line with the beam. A cracked or dirty ceramic shows up as height sensing alarms and nozzle crashes.
It fits the Raytools BS12K, BS15K and BS20K heads that use this ceramic. Sold in packs of 1, 5 or 10.
| Replaces | Raytools 120515089A |
| Diameter | 41 mm |
| Height | 12.9 mm |
| Nozzle Thread | M11 x 0.75 |
| Takes | M11 nozzle used on high power heads |
| Material | Alumina ceramic body with threaded brass insert |
| Pack Options | 1 pack, 5 pack, 10 pack |
| Dimensions | Raytools Part No.(SPM Part No.) | Fits |
|---|---|---|
| D41 x H12.9 mm, M11 x 0.75 | 120515089A(SPM-LAS-3171) | BS12K, BS15K, BS20K |
| Ceramic | Fits |
|---|---|
| D32 M14 (120274100B) | BT240, BMH109, BMH110, BMH111, BMH114 |
| D28 M11 (120515099A) | BT220, BM114, BM115, BS06K |
| D19.5 M8 (120572008B) | BT240, BMH109, BMH110, BMH111, BMH114, GF101 |
| D21.4 M8 (120515093A) | BD04K, BD08K, BS12K, BS15K |
After a head collision
A crash into a tipped part or the sheet edge usually cracks the ceramic before anything else. A spare gets the machine cutting again in minutes.
Height sensing alarms
Erratic capacitive readings, height jumps or false collision alarms are often a cracked or dirty ceramic. Swap it before recalibrating the sensor.
High power heads
On 12 kW and above, spatter and heat age the ceramic faster. Keep a spare for every head.
Planned maintenance
Inspect the ceramic at every nozzle change and replace it when chips, cracks or heat discolouration appear.
Found this part cheaper somewhere else? Send us the listing and we will beat it by 5% under our Price Beat Guarantee. Every order is also covered by our 30 day money back guarantee.
Check for 120515089A in your head's parts list, or measure the old one: 41 mm across, 12.9 mm high, with an M11 nozzle thread.
No. It is an aftermarket ceramic made to the same dimensions and thread. The Raytools number 120515089A is shown so you can match your part.
Every pack holds the same ceramic. The bigger the pack, the lower the price per piece, which suits shops that keep spares for collisions.
Screw it in by hand until it seats, then fit the nozzle. Do not use tools or overtighten; ceramic cracks under excess torque.
Yes. Shipping options and costs for your country are shown at checkout.
