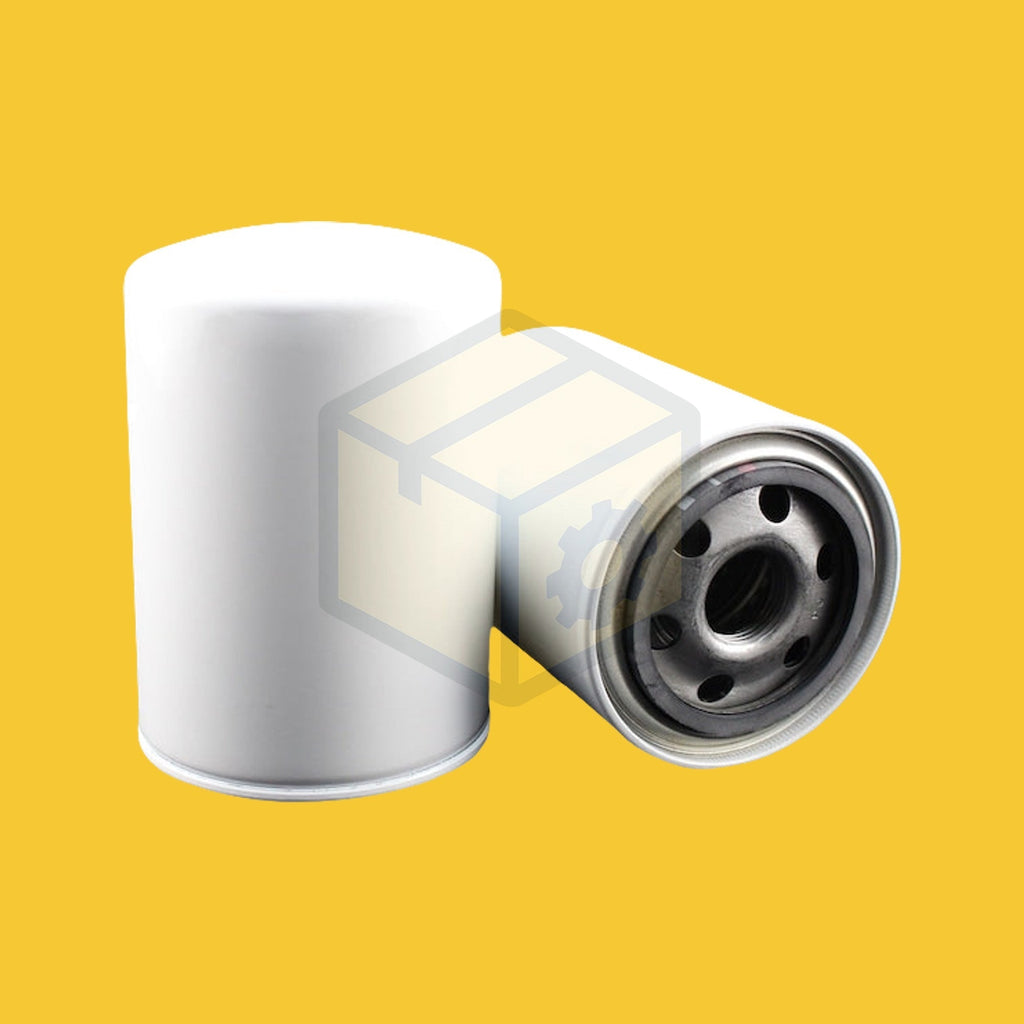

Alup 17251002 Aftermarket Separator

$45.73 USD

SKU: SPM-SEP-1063
Availability: in stock Many in stock Out of stock In-stock at manufacturer. Please add 5-10 days to shipping time
Weight: 0.98 kg (2.16 lb)

Keep a spare: buy 2 and the second one is 5% off ($43.44)

Electronic Timer Condensate Drain Valve for A...: ~~$25.02~~ $23.77 with this part

Nitrile (NBR) O-Ring Assortment Kit, Metric, ...: ~~$9.36~~ $8.90 with this part

Members earn 45 points on this order. Join today to earn 200 points off your first order.

Product Type: Separator
Barcode:

We ship worldwide

Economy and Express options at checkout

Need help?

Money back guarantee

We provide a 30 day 100% money back guarantee

Customer support

Dedicated support team ready to help

Alup 17251002, direct aftermarket replacement. This separator is an aftermarket separator designed as a direct replacement for a wide range of compressed air systems. With a permissible flow of 120 m³/h and dimensions of 93 mm outer diameter and 212 mm height, this lightweight separator (0.98 kg) is built to the original dimensions and ratings for reliable moisture and particulate removal. It serves as a cost-effective alternative to branded separators from Almig, Alup, Gardner Denver, and many others, ensuring your compressed air stays clean and dry. Technical properties & cross references

Specifications

Permissible Flow	120 m3/h
Body Height	212 mm (8 11/32")
Total Height	212 mm (8 11/32")
Product Net Weight	0.98 kg (2.16 lbs)
Outer Diameter	93 mm (3 21/32")
Stat. HS-Code	84149000
Country of Manufacture	China

Compatible equipment

Almig

FLEX 6-7-11-15 BELT 4-5-7 from serial n° F0500001 to F0606340 COMBI 15 BELT 4-5-7-10 from serial n° S0016862 BELT 11-15 COMBI 11

Alup

SCK 8 from s/n F0606343 SCK 5 from s/n 271800 SCK 15 from s/n 271800 SOLO 6 SOLO 15 SCK 8 from s/n 260000 SCK 22 from s/n 280000 SCK 10 from s/n 271800 SOLO 7 SOLO 11 VARIO 11 SCK 22 up to s/n 259999 SCK 22 from s/n 260000 SCD 15 VARIO 16 VARIO 15 SCK 15 up to s/n 259999 SCK 15 from s/n 260000 SCK 8 from s/n CAI270445 SCK 15 from s/n CAI270445 ALLEGRO 8 C55 Air End s/n CAI876886 ALLEGRO 11 C55 Air End from s/n CAI876886 SCK 9 from s/n CAI064290 SCK 6 from s/n CAI270445 SCK 10 from s/n CAI270445 ALLEGRO 11 from s/n CAI270445 ALLEGRO 14 C55 Air End from s/n CAI876886

Compair

L 11 RS CYCLONE 215 START 007 L 07 L 04 SPRINT 015-022 CYCLONE 111 START 010 START 005 L 05 SC 20 DS-3

Gardner Denver

ESM 11 TK ESM 7 ESM 7 TK ESM 11 KSA 11 KSA 15

Abac

GENESIS 15 BA 69 VT 20 CMP SMART 20 (8-10-13 bar)FORMULA 15 BA 51 SPINN 11 GENESIS 15 ZENITH 15-500 ZENITH 15 FORMULA 15 BA 69 VT 15 CMP SMART 15 (8-10-13 bar)FORMULA 11 GENESIS 15 BA 51 GENESIS 11 ZENITH 15-270 GENESIS 5.5 13 bar from 2011 SPINN 5.5 from 2011 MICRON 7.5 GENESIS 11 from 2011 MICRON 11 GENESIS 5.5 from 2011 FORMULA 11 from 2011 FORMULA 7.5 10/13 bar from 2011 FORMULA 5.5 from 2011 SPINN 7.5 from 2011 SPINN 11 from 2011 GENESIS 15 from 2011 MICRON 15 FORMULA 15 from 2011 GENESIS 7.5 from 2011 FORMULA 7.5 from 2011 FORMULA 15 BA 77 from 2011 FORMULA 5.5 10/13 bar from 2011

Adicomp

WIND 11 VE 15 A WIND 15 VE 15 B VE 11 A

Atlas

GA 5 C from s/n 145000 GX 5 up to s/n 619999 GX 11 up to s/n 619999 GX 7 up to s/n 619999 GN 7.2 GA 11 VSD from s/n AII 140000 GA 7 C from s/n 145000 GX 7 from s/n 620000 GX 5 from s/n 620000 GA 11 C fom s/n API 100000 GX 11 from s/n 620000 GA 7 VSD from s/n AII 140000 GX 5-11C

Atmos

PD 5 R E 95 E 60-12 E 50 E 60 PB 80 E 70 Z E 40 E 60 M

Balma

MODULO 15/69 MODULO 11 GALAXY 15 OASIS 15 MODULO 15/51 BRIO 11 GALAXY 15-270

Betico

ER 5P

Boge

SDF 15 SD 15 from s/n 21867 up to s/n 31486 S 15 from s/n 21867 up to s/n 31486 SD 15 from s/n 31487 S 15 from s/n 31487

Bottarini

KS 9 KS 12 KSA 11 GBV 10 KSA 11 KSA 15 KS 18 KSA 15 KS 22 DS 2-18

Chinook

ULISSE GK 5.5 SCI 8 MAESTRO 5.5 ULISSE TK 15 ULISSE GK 7.5 ULISSE TK 7.5 ULISSE GK 11 MAESTRO 7.5 MAESTRO 11 ULISSE TK 5.5 ULISSE TK 11 ULISSE TKS 15

Dalgakiran

HGS 15 HGS 11 TIDY 20 TIDY 15

Ekomak

EKO 5.5 EKO 7.5 EKO 11

Fiac

New Silver 20 CRS D 10 TK 7.5 TKS 10 CRS 5.5 TK 15 Old AIRBLOCK 10-15 TK 10 Old SILVER 7.5 SILVER 15 New Silver 7.5 New Silver 10 TK 5.5 CRS D 5.5 CRS 15 New Silver 15 CRS 7.5 TK 7 Old CRS 10 TK 15 New TK 10 SILVER 5.5 SILVER 10 New Silver 5.5 CRS 20 CRS D 7.5

Fini

KSC 10 cod 260LK0050 BSC 10 Evolution from 2015 K-MAX 7.5 VS BS 20 BSC 10 ROTAR K-MAX 20 K-MAX 20 VISION 20 ES K-MAX 15 VS ROTAR BSC R-EVO 20 ROTAR QUADRO 15 VISION 15 ES K-MAX 15 ROTAR BSC 20 Evolution K-MAX 11 VISION 11 ES ROTAR BSC 15 Evolution BSC 20 Evolution from 2015 QUADRO 21 ROTAR BSC 10 Evolution QUADRO 15 BSC 20 KSC 7 cod 260LK0050 PLUS 15 BSC 15 Evolution from 2015 KSC 5 cod 260LK0050 K-MID 10 STC BSC 15 BUILDAIR 1500 BSC 10 Evolution ROTAR QUADRO 10 K-MAX 20 STC BS 15 ROTAR K-MAX 15 ROTAR QUADRO 20 VISION 20 K-MAX 15 STC ROTAR BSC R-EVO 15 VISION 15 K-MAX 11 VS ROTAR BSC 20 cod 260LJ0050 BSC 20 R-EVO VISION 11 ROTAR BSC 15 cod 260LJ0050 QUADRO 20 BSC 20 Evolution ROTAR BSC 10 cod 260LJ0050 PLUS 16 BSC 15 R-EVO KSC 5 cod 260LK0051 PLUS 11 BSC 15 Evolution

Komsan

VEK 7.5 VEK 5.5 VEK 10 VEK 15

MX 1500 ROTOR 1000

Mattei

BLADE 11 BLADE 7 BLADE 4 BLADE 5

Nuair

STAR 15

Osd

KD 103

Parise

PV 20 PHK 20 PD 20 EC-06 PHA R 15 PX-PXA 15 PVB 15 PVA 15 PV 15 PD 15 EC-06 PHK 15 PHA 15 PVB 20 PVA 20

Power System

PS 411 JUNIOR 11 PS 1315 PM INDUSTRIAL 15 PASCAL 7.5 PS 1309 PM EDISON DV 1315 TRINITY 11 13/15 bar version TRINITY 11 PS 1007 13/15 bar PASCAL 11 PS 1311 13 bar version PS 1311 DARWIN 11 KELVIN 11 PS 10 DV PS 1015 13/15 bar version PS 1015 INDUSTRIAL 11 13/15 bar version NEWTON 1307 GTEC 15 KELVIN 15 JUNIOR 7.5 13bar GTEC 11 JUNIOR 15 DV PS 9 DVJUNIOR 15 13barPS 407JUNIOR 11 13barPS 1315 DV INDUSTRIAL 11TRINITY 15 13/15 bar versionTRINITY 15 PS 1309 DVPS 1315 13 bar versionPS 1315 EDISON DV 1309PS 1005 13/15 barNEWTON 1315PS 1307 13 bar versionPS 1307INDUSTRIAL 15 13/15 bar versionNEWTON 1311 PASCAL 15GTEC 15 13/15 bar versionPS 1011 13/15 bar versionPS 1011 JUNIOR 7.5GTEC 11 13/15 bar versionJUNIOR 5.5 13barDARWIN 15 JUNIOR 15

Rotair

EN 15 9.5 bar

Rotorcomp

EVO6-NK-G

Shamal

ULISSE TK 7.5 ULISSE TK 15 ULISSE GK 7.5 ULISSE GK 11 MAESTRO 7.5 MAESTRO 11 ULISSE TKS 15 ULISSE TK 5.5 ULISSE TK 11 ULISSE GK 5.5SCI 8MAESTRO 5.5

Sullair

TREK 2.2 TREK 4 TREK 5.5

Termomeccanica

SCI 8

Worthington

Ingersoll

SSR UP 5-4R 5-11UNI 7-10NIRVANA IRN7KNIRVANA IRN11KSSR UP 6-5SSR UP 6-10SSR UP 5-5SSR UP 5-11 CUNI 11-10UNI 18-8NIRVANA IRN5KSSR UP 6-7.5SSR UP 6-15 CSSR UP 5-7.5

Ceccato

CSM 10 CSA 5.5 CSA 20 CSA 15 MSM 7.5 MSM 11 CSM 15 CSA 7.5 CSA 20 Inverter CSA 15 Inverter CSA 10 CSM 7.5 MAXI MSM 15 CSM 20

Chicago

CPN 10CPVS D 20 (15 kw)CPVS D 10 (7.5 kw)CPVS D 15 (11 kw)CPN 15

Mark

MSM 7.5 MSM 11 MSA 5.5 MSA 15 INVERTER CSM 20 MSA 11 INVERTER CSM 10 MSM 15 MSA 7.5 MSA 11 MSA 4 MSA 15 CSM 15

Puska

PKM 15 CSA 5.5/10

Stenhoj

CK 15-20 CK 6-7-10

Renner

RSF 15RS TOP 3.0 - 4.0 - 5.5 - 7.5 - 9.0 RS 3.0 - 4.0 - 5.5 - 7.5 - 9.0RS 11.0 - 15.0RS 4.0RSF 11RS TOP 11.0 - 15.0RS 1-11

Cross references

Brand	Code
Almig	57251002
Almig	67251002
Alup	17251002
Fai Filtri	DSP-070-3
Gardner Denver	ZS1059791
HiFi Filter	OV 6016
Mann-Filter / Mann & Hummel	LB 962/21
Mann-Filter / Mann & Hummel	LB96221
Mann-Filter / Mann & Hummel	LB9624
Noitech	NS 100097
Noitech	NS P01550
Oxfil	SP.5044
Oxfil	SP.6024
Quincy	DD17251003
SF Filter	SPA50027
Sotras	DF 5044
Sotras	DF5044
Spare Part Mart	SPM-SEP-1063
T.G. Filter	96213

Price beat guarantee

We check what other aftermarket sellers charge for this same part. Their prices on the date we checked:

Seller	Price	Checked
Oxfil	USD 57.16	16 Oct 2026
The Air Market	USD 80.22	15 Oct 2026
Air Compressor Services	USD 156.50	15 Oct 2026
Compressor Parts Express	USD 237.97	15 Oct 2026
FilterFinder Online	USD 3,337.00	15 Oct 2026
Spare Part Mart	USD 45.73	Today

Our price of USD 45.73 is 20% to 99% less than these sellers.

Found this part cheaper somewhere else? Send us the listing and we will beat it by 5% under our Price Beat Guarantee. Every order is also covered by our 30 day money back guarantee.

Use cases & applications

High-Volume Continuous Duty
In industrial settings where compressors run continuously, this separator handles flows up to 120 m³/h, effectively removing condensate and particulates to protect downstream equipment. This reduces unplanned downtime and extends the life of your pneumatic tools and machinery.

Dusty or Humid Environments
For compressors operating in dusty workshops or humid climates, this separator provides reliable filtration to prevent moisture buildup in air lines. It helps maintain consistent air quality, reducing corrosion and contamination in sensitive applications like painting or food packaging.

Fleet Maintenance Consolidation
Facilities with multiple compressor brands can standardise on this separator, as it replaces separators across Almig, Alup, Fini, and many other brands. This simplifies inventory management and reduces the need to stock multiple part numbers.

Scheduled Replacement Programs
For preventive maintenance schedules, this separator offers a straightforward swap-out option. Its lightweight design and precise dimensions make it easy to install during routine service intervals, ensuring consistent performance without special tools.

Frequently asked questions

How can I confirm this separator fits my compressor?

Check your compressor model against the verified list in the product description. The separator fits many Almig, Alup, Gardner Denver, Abac, Atlas, Boge, Fini, and other models. If your model is not listed, contact us with your compressor serial number for confirmation.

What filtration rating does this separator have?

This separator is a separator, not a filter, designed to remove bulk liquids and large particulates. It does not have a micron rating. For finer filtration, use it in conjunction with a downstream filter.

What are the exact dimensions and how does it fit?

The separator has an outer diameter of 93 mm and a height of 212 mm. It weighs 0.98 kg. It is a direct replacement for OEM separators with matching dimensions and connection types. Verify your existing separator dimensions to ensure compatibility.

Is this an OEM or genuine part?

No, this separator is an aftermarket replacement built to the original dimensions and ratings. It is not a genuine or OEM part but is designed to perform the same function as the original separator from brands like Almig, Alup, or Gardner Denver.

How do I install the separator?

Installation is similar to the original separator. Turn off the compressor, depressurise the system, remove the old separator, and install the new one in the same orientation. Ensure a proper seal. Refer to your compressor manual for specific steps.

What are the delivery and guarantee terms?

We offer a 30-day money-back guarantee and a price-beat guarantee. Worldwide shipping with tracking is available. Contact us for specific shipping times to your location.

30-day money back guarantee Worldwide delivery Price beat guarantee

Images and data are used as a guide and are deemed reliable to Spare Part Mart. Product may appear differently (e.g. colour) but will be as per the specs above. All cross references are deemed reliable to our knowledge. We encourage you to double check before ordering.
