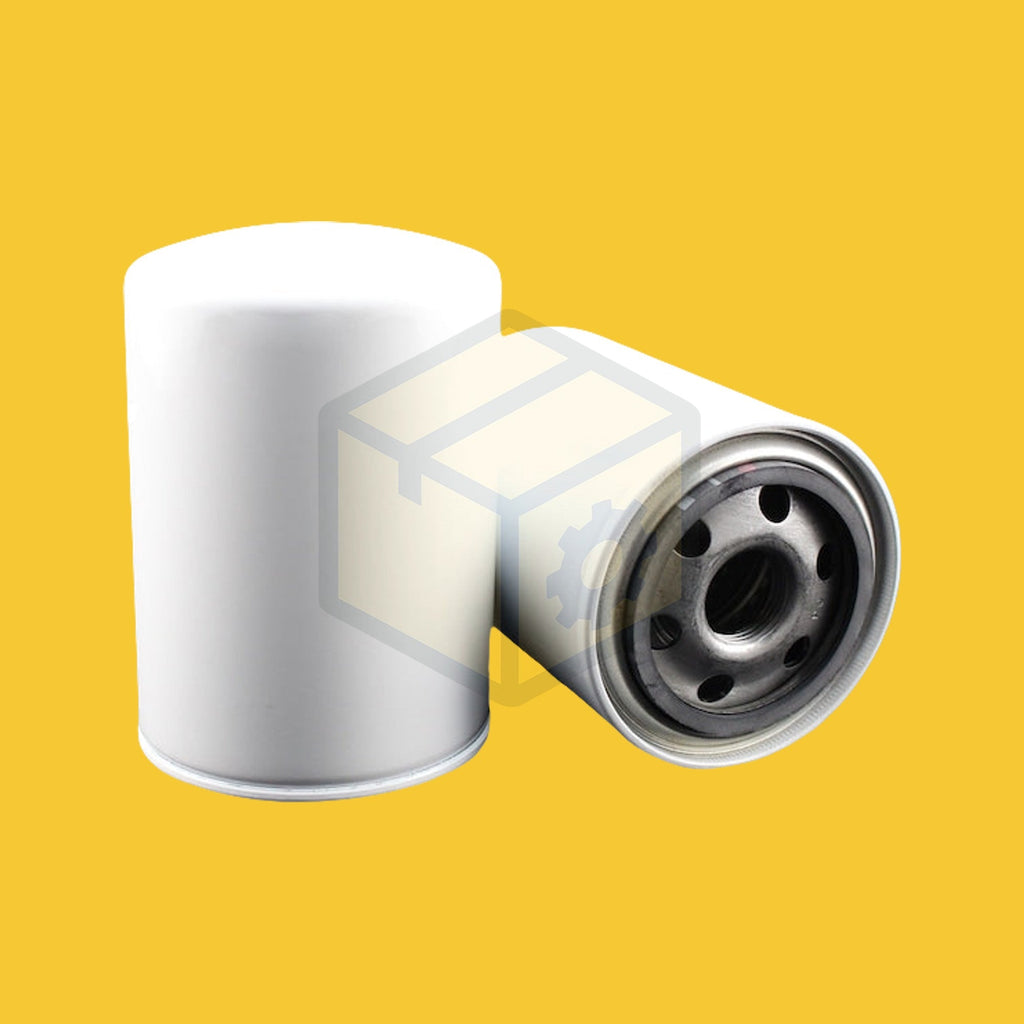

Tong Cheng C225015 Aftermarket Separator (SPM-SEP-1206)

Tong Cheng C225015 Aftermarket Separator

$45.73 USD

SKU: SPM-SEP-1206
Availability: in stock Many in stock Out of stock In-stock at manufacturer. Please add 5-10 days to shipping time
Weight: 0.72 kg (1.59 lb)

Keep a spare: buy 2 and the second one is 5% off ($43.44)

Electronic Timer Condensate Drain Valve for A...: ~~$25.02~~ $23.77 with this part

Nitrile (NBR) O-Ring Assortment Kit, Metric, ...: ~~$9.36~~ $8.90 with this part

Members earn 45 points on this order. Join today to earn 200 points off your first order.

Product Type: Separator
Barcode:

We ship worldwide

Economy and Express options at checkout

Need help?

Money back guarantee

We provide a 30 day 100% money back guarantee

Customer support

Dedicated support team ready to help

Tong Cheng C225015, direct aftermarket replacement. This separator is a high-performance aftermarket separator element designed as a direct replacement for a wide range of compressor brands including Almig, Atlas, Compair-Demag, Fusheng, Hanbell, and many others. It utilises a borosilicate micro glass fibre media with a 3 µm filtration rating to effectively remove oil and particulates from compressed air systems. With a permissible flow of 120 m³/h and a working pressure of 20 bar, this separator is built to the original dimensions and ratings for reliable operation. The element features a female M24 thread at the bottom and an outer diameter of 93 mm, ensuring a secure fit in compatible housings. As an aftermarket part, it offers a cost-effective alternative without compromising on performance. Technical properties & cross references

Specifications

Burst Pressure	23 bar (334 PSI)
Element Collapse pressure	5 bar (73 PSI)
Filtration Media	Borosilicate micro glass fibre 3 µm
Media type	Borosilicate micro glass fibre
Filtration Rating	3 µm
Permissible Flow	120 m3/h
Flow direction	Out-In
Total Height	212 mm (8 11/32")
Thread	M M24 Female Bottom 1.5 mm
Type	M
Thread Size	M24
Orientation	Female
Position	Bottom
Product Net Weight	1 kg (2.2 lbs)
Working Pressure	20 bar (290 PSI)
Outer Diameter	93 mm (3 21/32")
Stat. HS-Code	84149000
Country of Manufacture	China

Compatible equipment

Renner

RS 4.0RSF 11RS TOP 11.0 - 15.0RS 1-11RSF 15RS TOP 3.0 - 4.0 - 5.5 - 7.5 - 9.0 RS 3.0 - 4.0 - 5.5 - 7.5 - 9.0RS 11.0 - 15.0

Abac

ZENITH 15-270 GENESIS 15 BA 69VT 20 CMPSMART 20 (8-10-13 bar)FORMULA 15 BA 51 SPINN 11 GENESIS 15 ZENITH 15-500 ZENITH 15 FORMULA 15 BA 69VT 15 CMPSMART 15 (8-10-13 bar)FORMULA 11 GENESIS 15 BA 51 GENESIS 11 SPINN 11 from 2011 GENESIS 15 from 2011 MICRON 15 FORMULA 15 from 2011 GENESIS 7.5 from 2011 FORMULA 7.5 from 2011 FORMULA 15 BA 77 from 2011 FORMULA 5.5 10/13 bar from 2011GENESIS 5.5 13 bar from 2011SPINN 5.5 from 2011 MICRON 7.5 GENESIS 11 from 2011 MICRON 11 FORMULA 11 from 2011 GENESIS 5.5 from 2011 FORMULA 7.5 10/13 bar from 2011 FORMULA 5.5 from 2011 SPINN 7.5 from 2011

Adicomp

VE 11 A WIND 15 VE 15 B VE 15 A WIND 11

Alup

VARIO 15 SCK 15 up to s/n 259999 SCK 15 from s/n 260000 VARIO 11 SCK 22 up to s/n 259999 VARIO 16 SCK 22 from s/n 260000 SCD 15 SCK 8 from s/n F0606343 SCK 5 from s/n 271800 SCK 15 from s/n 271800 SOLO 6 SOLO 15 SCK 8 from s/n 260000 SCK 22 from s/n 280000 SCK 10 from s/n 271800 SOLO 7 SOLO 11 ALLEGRO 11 from s/n CAI270445 ALLEGRO 14 C55 Air End from s/n CAI876886 SCK 8 from s/n CAI270445 SCK 15 from s/n CAI270445 ALLEGRO 8 C55 Air End s/n CAI876886 ALLEGRO 11 C55 Air End from s/n CAI876886 SCK 9 from s/n CAI064290 SCK 6 from s/n CAI270445 SCK 10 from s/n CAI270445

Atlas

GX 5-11CGX 7 from s/n 620000GA 7 C from s/n 145000GX 5 from s/n 620000GA 11 C fom s/n API 100000GX 11 from s/n 620000GA 7 VSD from s/n AII 140000GX 5 up to s/n 619999GA 5 C from s/n 145000GX 7 up to s/n 619999GX 11 up to s/n 619999GN 7.2GA 11 VSD from s/n AII 140000

Atmos

E 40 E 70 Z E 60 M PB 80 E 50 E 60-12E 60PD 5 RE 95

Balma

OASIS 15 MODULO 15/51 BRIO 11 GALAXY 15 MODULO 15/69 MODULO 11 GALAXY 15-270

Betico

ER 5P

Boge

SD 15 from s/n 31487 S 15 from s/n 31487 SDF 15 SD 15 from s/n 21867 up to s/n 31486 S 15 from s/n 21867 up to s/n 31486

Bottarini

KS 18 KSA 15 KS 22 DS 2-18 KS 9 KSA 11 KSA 15 KS 12 KSA 11 GBV 10

Chinook

ULISSE GK 11MAESTRO 7.5MAESTRO 11ULISSE TK 5.5ULISSE TK 11ULISSE TKS 15ULISSE GK 5.5SCI 8MAESTRO 5.5ULISSE TK 15ULISSE TK 7.5ULISSE GK 7.5

Compair-Demag

START 010CYCLONE 215START 005L 05SC 20 DS-3START 007CYCLONE 111L 07L 04SPRINT 015-022L 11 RS

Dalgakiran

HGS 15 HGS 11 TIDY 20 TIDY 15

Ekomak

EKO 5.5EKO 7.5EKO 11

Fiac

CRS D 5.5CRS 15New Silver 15CRS 7.5 TK 7 Old CRS 10TK 15 NewTK 10SILVER 5.5SILVER 10New Silver 5.5CRS D 7.5CRS 20New Silver 20TK 7.5 CRS D 10TKS 10CRS 5.5 TK 15 Old AIRBLOCK 10-15 TK 10 OldSILVER 7.5SILVER 15New Silver 7.5TK 5.5New Silver 10

Fini

BSC 15PLUS 16BUILDAIR 1500ROTAR QUADRO 10BSC 10 EvolutionBS 15PLUS 11ROTAR K-MAX 15ROTAR QUADRO 20K-MAX 15 STCK-MAX 7.5 VSROTAR BSC R-EVO 15K-MAX 20K-MAX 11 VSVISION 20 ESROTAR BSC 20 cod 260LJ0050BSC 20 R-EVOROTAR BSC 15 cod 260LJ0050VISION 15 ESBSC 20 EvolutionROTAR BSC 10 cod 260LJ0050VISION 11 ESBSC 15 R-EVOQUADRO 21KSC 5 cod 260LK0051BSC 15 EvolutionQUADRO 15KSC 10 cod 260LK0050BSC 10 Evolution from 2015BS 20PLUS 15ROTAR K-MAX 20BSC 10K-MAX 15 VSK-MID 10 STCROTAR QUADRO 15ROTAR BSC R-EVO 20K-MAX 15K-MAX 20 STCROTAR BSC 20 EvolutionK-MAX 11ROTAR BSC 15 EvolutionVISION 20BSC 20 Evolution from 2015ROTAR BSC 10 EvolutionVISION 15BSC 20KSC 7 cod 260LK0050VISION 11BSC 15 Evolution from 2015QUADRO 20KSC 5 cod 260LK0050

Gardner

KSA 11 KSA 15ESM 11ESM 11 TKESM 7ESM 7 TK

Komsan

VEK 15VEK 7.5VEK 5.5VEK 10

ROTOR 1000MX 1500

Mattei

BLADE 5 BLADE 11 BLADE 7 BLADE 4

Nuair

STAR 15

Osd

KD 103

Parise

PVB 20 PVA 20 PV 20 PD 20 EC-06 PHK 20 PHA R 15 PX-PXA 15 PVB 15 PVA 15 PV 15 PD 15 EC-06 PHK 15 PHA 15

Power System

GTEC 11 13/15 bar versionJUNIOR 5.5 13barDARWIN 15JUNIOR 15PS 411JUNIOR 11PS 1315 PMPASCAL 7.5INDUSTRIAL 15PS 1309 PMTRINITY 11 13/15 bar versionTRINITY 11EDISON DV 1315PASCAL 11PS 1007 13/15 barDARWIN 11PS 1311 13 bar versionPS 1311KELVIN 11PS 10 DVINDUSTRIAL 11 13/15 bar versionPS 1015 13/15 bar versionPS 1015NEWTON 1307KELVIN 15GTEC 15JUNIOR 7.5 13barGTEC 11JUNIOR 15 DVPS 9 DVJUNIOR 15 13barPS 407JUNIOR 11 13barPS 1315 DVTRINITY 15 13/15 bar versionTRINITY 15INDUSTRIAL 11PS 1309 DVPS 1315EDISON DV 1309PS 1315 13 bar versionNEWTON 1315PS 1005 13/15 barINDUSTRIAL 15 13/15 bar versionPS 1307 13 bar versionPS 1307PASCAL 15NEWTON 1311GTEC 15 13/15 bar versionPS 1011 13/15 bar versionPS 1011JUNIOR 7.5

Rotair

EN 15 9.5 bar

Rotorcomp

EVO6-NK-G

Shamal

ULISSE TK 7.5ULISSE TK 15ULISSE GK 7.5ULISSE GK 11MAESTRO 7.5MAESTRO 11ULISSE TKS 15ULISSE TK 5.5ULISSE TK 11ULISSE GK 5.5SCI 8MAESTRO 5.5

Sullair

TREK 5.5 TREK 2.2 TREK 4

Termomeccanica

SCI 8

Worthington

Almig

BELT 4-5-7-10 from serial n° S0016862 BELT 11-15 COMBI 11 FLEX 6-7-11-15 BELT 4-5-7 from serial n° F0500001 to F0606340 COMBI 15

Ingersoll

SSR UP 5-4R 5-11UNI 7-10NIRVANA IRN7KNIRVANA IRN11KSSR UP 6-5SSR UP 6-10SSR UP 5-5SSR UP 5-11 CUNI 11-10UNI 18-8NIRVANA IRN5KSSR UP 6-7.5SSR UP 6-15 CSSR UP 5-7.5

Ceccato

CSA 15 Inverter CSA 10 CSM 7.5 MAXI MSM 15 CSM 20 CSM 10 CSA 5.5 CSA 20 CSA 15 MSM 7.5 MSM 11 CSM 15 CSA 7.5 CSA 20 Inverter

Chicago

CPVS D 15 (11 kw)CPN 15CPN 10CPVS D 20 (15 kw)CPVS D 10 (7.5 kw)

Mark

MSA 7.5 MSA 11 MSA 4 MSA 15 CSM 15 MSM 7.5 MSM 11 MSA 5.5 CSM 20 MSA 15 INVERTER MSA 11 INVERTER CSM 10 MSM 15

Puska

CSA 5.5/10 PKM 15

Stenhoj

CK 6-7-10 CK 15-20

Cross references

Brand	Code
Almig	57251001
Chelyabinsk Compressor (CHKZ)	CP2/1
Compair-Demag	100012999
Fai Filtri	DSP-070-D-HC
Filcom	F02125018
Fusheng	2116010109
Fusheng	7111121146910B
Hanbell	4213-09
HiFi Filter	OV 6084
Mann-Filter / Mann & Hummel	4930659471
Mann-Filter / Mann & Hummel	LB 962/20
Metalplan	3120234
Noitech	NS P03350
Oxfil	SP.6046
Renner	10279
Schulz	007.0233-0
Spare Part Mart	SPM-SEP-1206
Tong Cheng	C225015

Price beat guarantee

We check what other aftermarket sellers charge for this same part. Their prices on the date we checked:

Seller	Price	Checked
Oxfil	USD 57.16	16 Oct 2026
The Air Market	USD 125.55	15 Oct 2026
Air Compressor Services	USD 140.50	15 Oct 2026
Spare Part Mart	USD 45.73	Today

Our price of USD 45.73 is 20% to 67% less than these sellers.

Found this part cheaper somewhere else? Send us the listing and we will beat it by 5% under our Price Beat Guarantee. Every order is also covered by our 30 day money back guarantee.

Use cases & applications

Continuous-Duty Industrial Applications
In facilities where compressors run 24/7, such as manufacturing plants, this separator ensures consistent air quality by maintaining high filtration efficiency over extended periods. Its robust construction with a burst pressure of 23 bar and collapse pressure of 5 bar provides reliability under continuous load.

Dusty and Harsh Environments
For compressors operating in dusty settings like construction sites or workshops, the 3 µm borosilicate micro glass fibre media captures fine particulates effectively. The out-in flow direction helps prevent clogging from external debris, extending service life.

Fleet Maintenance and Inventory Consolidation
Service teams managing multiple compressor brands (e.g., Abac, Boge, Fini, Sullair) can standardise on this separator, reducing inventory complexity. Its cross-reference compatibility with dozens of OEM part numbers allows a single stock item to serve many machines.

High-Flow Rotary Screw Compressors
With a permissible flow of 120 m³/h, this separator is ideal for mid-sized rotary screw compressors in applications like automotive repair or light industrial use. It maintains low pressure drop while delivering clean air for pneumatic tools and equipment.

Frequently asked questions

How can I confirm this separator fits my compressor?

Check your compressor brand and model against the verified compatibility list, which includes specific models from Renner, Abac, Atlas, Boge, and many others. Also verify the thread size (M24 female bottom) and outer diameter (93 mm) match your existing separator.

What is the filtration rating and media type of this separator?

This separator uses borosilicate micro glass fibre media with a filtration rating of 3 µm. This media is designed to efficiently remove oil aerosols and solid particulates from compressed air.

What are the exact thread and dimensions of this element?

The separator has a female M24 thread at the bottom with 1.5 mm pitch. Total height is 212 mm, outer diameter is 93 mm, and it weighs 1 kg. Flow direction is out-in.

Is this an OEM or aftermarket part? How does it compare?

This separator is an aftermarket replacement, not an OEM part. It is built to the original dimensions and ratings and is a direct replacement for many branded separators. It offers a cost-effective alternative with the same performance characteristics.

How do I install this separator?

Installation is straightforward: ensure the compressor is depressurised and off. Remove the old separator, clean the housing, and insert the new element with the thread facing down. Tighten securely but do not overtighten. Always follow your compressor manual for specific instructions.

What delivery and guarantee options are available?

We offer worldwide shipping with tracking. Your purchase is covered by a 30-day money-back guarantee and our price-beat guarantee, ensuring you receive the best value.

30-day money back guarantee Worldwide delivery Price beat guarantee

Images and data are used as a guide and are deemed reliable to Spare Part Mart. Product may appear differently (e.g. colour) but will be as per the specs above. All cross references are deemed reliable to our knowledge. We encourage you to double check before ordering.
