Universal Filter Strap Wrench for Oil, Fuel a...: | Collapse pressure | 210 bar (3046 PSI) |
| Filtration Media | Inorganic Microfibers 5 µm |
| Media type | Inorganic Microfibers |
| Filtration Rating | 5 µm |
| Flow direction | Out-In |
| Total Height | 116 mm (4 9/16") |
| Largest Inner Diameter | 24 mm (15/16") |
| Largest Outer Diameter | 49.5 mm (1 15/16") |
| Stat. HS-Code | 84149000 |
| Country of Manufacture | China |
| Brand | Code |
|---|---|
| Behringer | BE9801403A |
| Billion | WN200083 |
| Comex | P9801D4H1003 |
| Comex | P9801D4H3 |
| Donaldson | P167270 |
| Epe | 169801H3LL2115RP |
| Epe | 169801RH3SLF000P |
| Fai Filtri | CF-981-1-A03-HA |
| Fairey Arlon | R981H0403A |
| Fairey Arlon | R981Z0403A |
| Filtersoft | H9804MABH |
| Filtersoft | H9813MABH |
| Finn Filter | FC7101A003BS |
| Finn Filter | FFKPVL17101A3ABS |
| Fleetguard | HF7108F |
| Hy-Pro | HP81L42MB |
| Hydac | 1251534 |
| Hydac | 1251535 |
| Hydac | 1262445 |
| Hydac | 1269965 |
| Hydac | 2060767 |
| Hydac | H98014003BH |
| Internormen | 0598013VG210EP4 |
| Internormen | 301138 |
| Mahle | 7788524 |
| Mahle | 7788565 |
| Mahle | 891024SMXVST3 |
| Mahle | P9801D04H2 |
| Mann-Filter / Mann & Hummel | HD5097 |
| New Holland (CNH) | 270408410R2 |
| Oxfil | HF.8255 |
| Pall | HC9801FDP4H |
| Pall | HC9801FKP4H |
| Parker Parfit | 935191 |
| Parker Parfit | GO2755 |
| Parker Parfit | PR2755Q |
| PTI | P98015GUB |
| Purolator | 9327447 |
| Schroeder | SBF98014S1B |
| Schroeder | SBF98014Z3B |
| Sofima (UFI) | CCH301FT21 |
| Sofima (UFI) | CH301FT21 |
| Sofima (UFI) | EPB21NHA |
| Sofrance | CD00115A |
| Spare Part Mart | SPM-HYD-1645 |
| ST Separat Tech | 8980H02B04 |
| Stauff | SP024F03B |
| Swft Filters Inc | SF980142UM |
| Triboguard | 980142UM |
| Vickers | V6014B1H03 |
| Vickers | V6014B1V03 |
| Western Filters | E6011B1U03 |
| Woodgate | WGPN98104 |
| Woodgate | WGPP98104 |
| Zinga | S0403HN |
We check what other aftermarket sellers charge for this same part. Their prices on the date we checked:
| Seller | Price | Checked |
|---|---|---|
| Oxfil | USD 42.59 | 16 Oct 2026 |
| Filtration Point | USD 61.69 | 12 Oct 2026 |
| Omega Filtration | USD 62.35 | 12 Oct 2026 |
| SONA Filtration | USD 67.01 | 12 Oct 2026 |
| Cardinal Filters | USD 86.10 | 12 Oct 2026 |
| FilterFinder Online | USD 99.00 | 12 Oct 2026 |
| Hydrafil | USD 150.95 | 12 Oct 2026 |
| Spare Part Mart | USD 34.07 | Today |
Our price of USD 34.07 is 20% to 77% less than these sellers.
Found this part cheaper somewhere else? Send us the listing and we will beat it by 5% under our Price Beat Guarantee. Every order is also covered by our 30 day money back guarantee.
High-Pressure System Protection
Hydraulic systems that peak near 210 bar demand a filter element that will not collapse under surge flows. This cartridge’s robust construction maintains consistent filtration even during cold starts or sudden load changes, preventing unfiltered oil from bypassing the media.
Fine Contamination Control for Sensitive Components
Modern hydraulic systems with tight-tolerance spool valves and servo controls benefit from the 5-micron inorganic microfibre media. Installing this filter helps reduce wear and silting, extending the service life of pumps and proportional valves.
Workshop Stock Consolidation
Because this filter cross-references filters from Behringer, Fleetguard, Parker, and many others, a single part number can service a wide range of machines. This simplifies inventory for service centres and minimises the chance of ordering errors.
Extended Oil Drain Intervals
Consistently high dirt-holding capacity means the element resists plugging longer in dusty operating environments, such as construction or agricultural sites. Better fluid cleanliness supports extended oil life and reduces disposal costs.

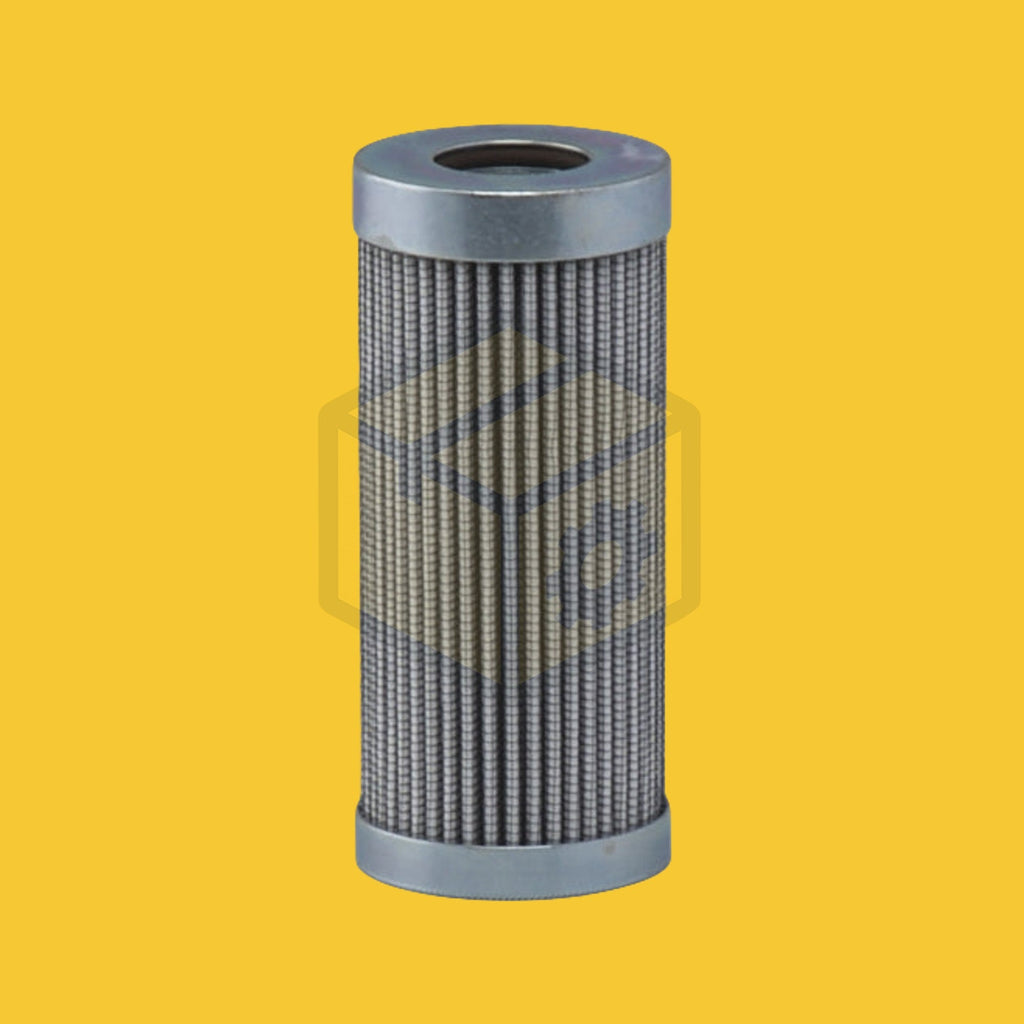

Check the dimensions of your current element: this filter has a total height of 116 mm, largest outer diameter of 49.5 mm, and largest inner diameter of 24 mm. It is a direct replacement for filters used in Hydac and New Holland (CNH) equipment and matches many other brand part numbers listed in our cross-reference table.
The filter is rated at 5 micron using inorganic microfibre media. This synthetic material delivers high dirt-holding capacity and excellent particle retention, helping to keep hydraulic oil at the cleanliness levels recommended by pump and valve manufacturers.
The filter is a drop-in element with an out-in flow direction. The critical mounting interfaces are the inner and outer diameters, 24 mm and 49.5 mm respectively, which seat against the housing’s standpipe and bowl. There are no threaded connections on the element itself; fitment depends on matching these diameters and the overall height.
This is a quality aftermarket filter, not a genuine OEM component. It is manufactured to match the performance and dimensions of the original filters it replaces, providing dependable filtration at a significantly lower cost than branded equivalents.
Replacement follows standard hydraulic safety procedures: depressurise the system, remove the housing bowl, extract the old element, and insert the new this filter. Ensure the sealing surfaces are clean and the element is seated correctly before reassembly. Always follow your equipment’s maintenance manual.
