Universal Filter Strap Wrench for Oil, Fuel a...: | Filtration Media | Inorganic Microfibers 12 µm |
| Media type | Inorganic Microfibers |
| Filtration Rating | 12 µm |
| Flow direction | Out-In |
| Total Height | 428 mm (16 7/8") |
| Largest Inner Diameter | 56.1 mm (2 7/32") |
| Largest Outer Diameter | 96 mm (3 25/32") |
| Stat. HS-Code | 84149000 |
| Country of Manufacture | China |
| Brand | Code |
|---|---|
| Airfil | AFKOVL38210 |
| Behringer | BE89001612A |
| Comex | P8900D16N10 |
| Comex | P8900D16N4010 |
| Donaldson | P166136 |
| Donaldson | P167891 |
| Donaldson | P167943 |
| Epe | 168900H10LL428UP |
| Epe | 168900UH10SLS000P |
| Fai Filtri | CF-890-3-A10-NA |
| Fairey Arlon | R890H1612A |
| Filtersoft | H8916MDBL |
| Finn Filter | FC1393F010BS |
| Finn Filter | FC1393Q010BT |
| Finn Filter | FFKPVL11136C10ABS |
| Fleetguard | HF30316 |
| Hastings | HF886 |
| Hy-Pro | HP89L1612MB |
| Hycon | H890016010BN |
| Hydac | 10816D12BN |
| Hydac | 10816D25BN |
| Hydac | 1269902 |
| Hydac | 2062447 |
| Internormen | 05890012VG10EP16 |
| Internormen | 306565 |
| Mahle | 891032SMX10 |
| Mann-Filter / Mann & Hummel | HD10100 |
| Napa | 1693 |
| Oxfil | HF.8065 |
| Pall | HC8900FKS16H |
| Parker Parfit | GO2777 |
| Parker Parfit | PR4365 |
| PTI | P89150KFB |
| Schroeder | SBF890016S7B |
| Schroeder | SBF890016Z10B |
| Sofima (UFI) | 30848 |
| Spare Part Mart | SPM-HYD-1594 |
| ST Separat Tech | 2890L12B16 |
| ST Separat Tech | 3890DGHB16 |
| ST Separat Tech | 8890L12B16 |
| Stauff | SP160E10B |
| Stauff | SP180E10B |
| Swft Filters Inc | SF89001612UM |
| Triboguard | 89001612UM |
| Vickers | V2691B5C10 |
| Vickers | V2691B5V10 |
| Volvo | 12627431 |
| Volvo | E12627431 |
| WIX | 51693 |
| WIX | 551693 |
| Woodgate | WGPS8916 |
We check what other aftermarket sellers charge for this same part. Their prices on the date we checked:
| Seller | Price | Checked |
|---|---|---|
| SONA Filtration | USD 57.00 | 12 Oct 2026 |
| Filtration Point | USD 58.45 | 12 Oct 2026 |
| Oxfil | USD 68.37 | 16 Oct 2026 |
| Cardinal Filters | USD 88.20 | 12 Oct 2026 |
| FilterFinder Online | USD 130.00 | 12 Oct 2026 |
| Hydrafil | USD 210.95 | 12 Oct 2026 |
| eBay (2 aftermarket sellers) | USD 222.45 | 12 Oct 2026 |
| Spare Part Mart | USD 45.60 | Today |
Our price of USD 45.60 is 20% to 80% less than these sellers.
Found this part cheaper somewhere else? Send us the listing and we will beat it by 5% under our Price Beat Guarantee. Every order is also covered by our 30 day money back guarantee.
High-Pressure Hydraulic Systems
In demanding applications like construction machinery, this filter protects pumps and valves from abrasive particles, extending component life.
Continuous-Duty Operations
For equipment running long shifts, the 12-micron media maintains low pressure drop and consistent fluid cleanliness, reducing unplanned downtime.
Fleet Maintenance Consolidation
With cross-compatibility across multiple filter brands, you can streamline inventory and use one part for various Hydac-equipped assets.
Dusty or Dirty Environments
The robust design and efficient particle capture guard against contamination in mining or agricultural settings, keeping hydraulic circuits clean.

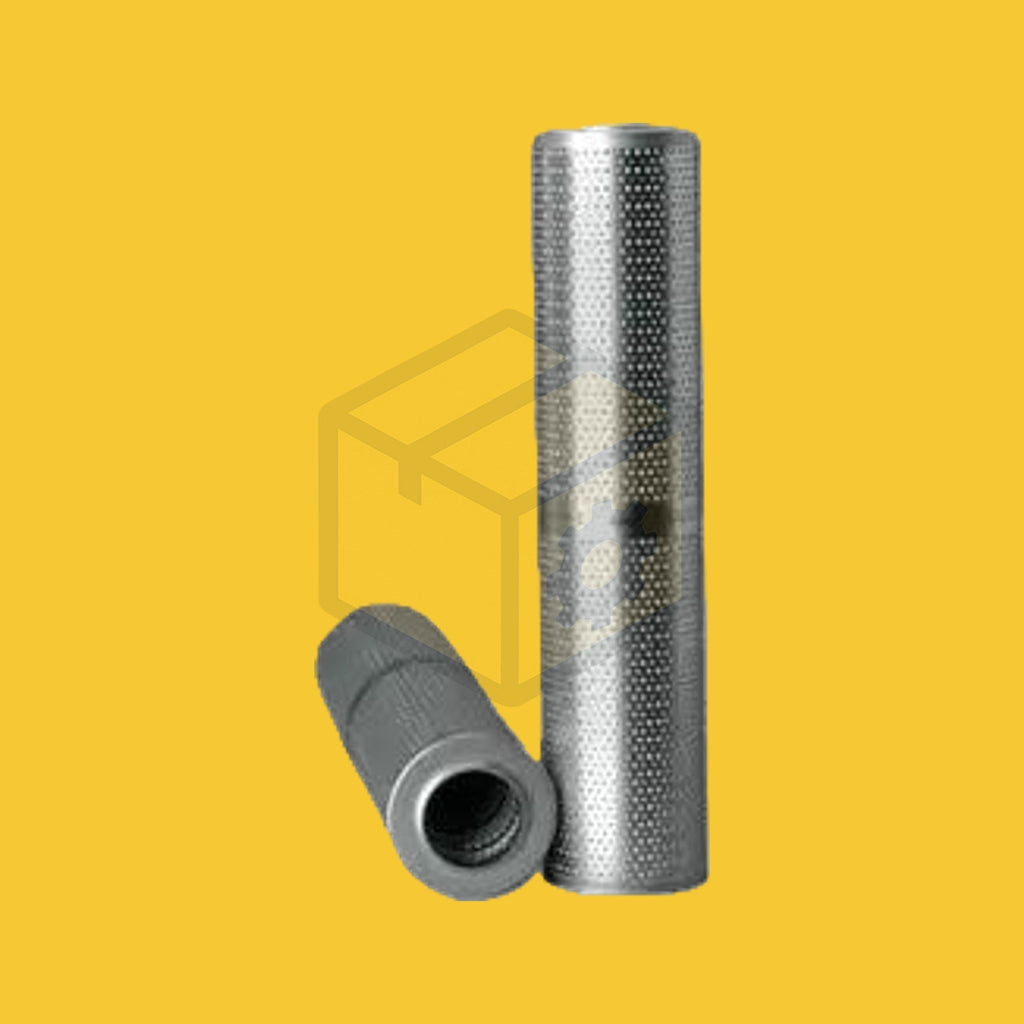

This SPM filter is engineered as a direct replacement for many Hydac hydraulic filter elements. To confirm fitment, compare the dimensions, 428 mm total height, 96 mm maximum outer diameter, and 56.1 mm largest inner diameter, with your current filter. It also cross-references with a broad range of brands including Donaldson, Mahle, and Fleetguard, so you may find your existing part number among those equivalents.
It uses inorganic microfibre media to achieve a 12-micron (µm) absolute filtration rating. This means it captures 99.9% of solid particles at or above 12 microns, reducing wear on pumps, seals, and valves.
The element has a total height of 428 mm, largest outer diameter of 96 mm, and largest inner diameter of 56.1 mm. Hydraulic fluid flows from the outside to the inside (out-in direction). Always verify that these measurements match your housing requirements before installation.
No, this is a high-quality aftermarket alternative, not a genuine Hydac part. It is built to the original dimensions and ratings for fit, form, and filtration performance, but it carries a more competitive price and comes with Spare Part Mart’s 30-day money-back guarantee.
Installation is straightforward and mirrors the OEM procedure. Isolate the hydraulic system, depressurise, remove the old filter element, and insert this filter. Ensure seals are properly seated and torque according to the housing manufacturer’s guidelines. Refer to your equipment manual for specific steps.
Spare Part Mart backs this filter with a 30-day money-back guarantee and a price-beat promise. We offer worldwide shipping with tracking, so you can order with confidence regardless of your location. Dispatch is prompt, and you will receive a tracking number once your package is on the way.
