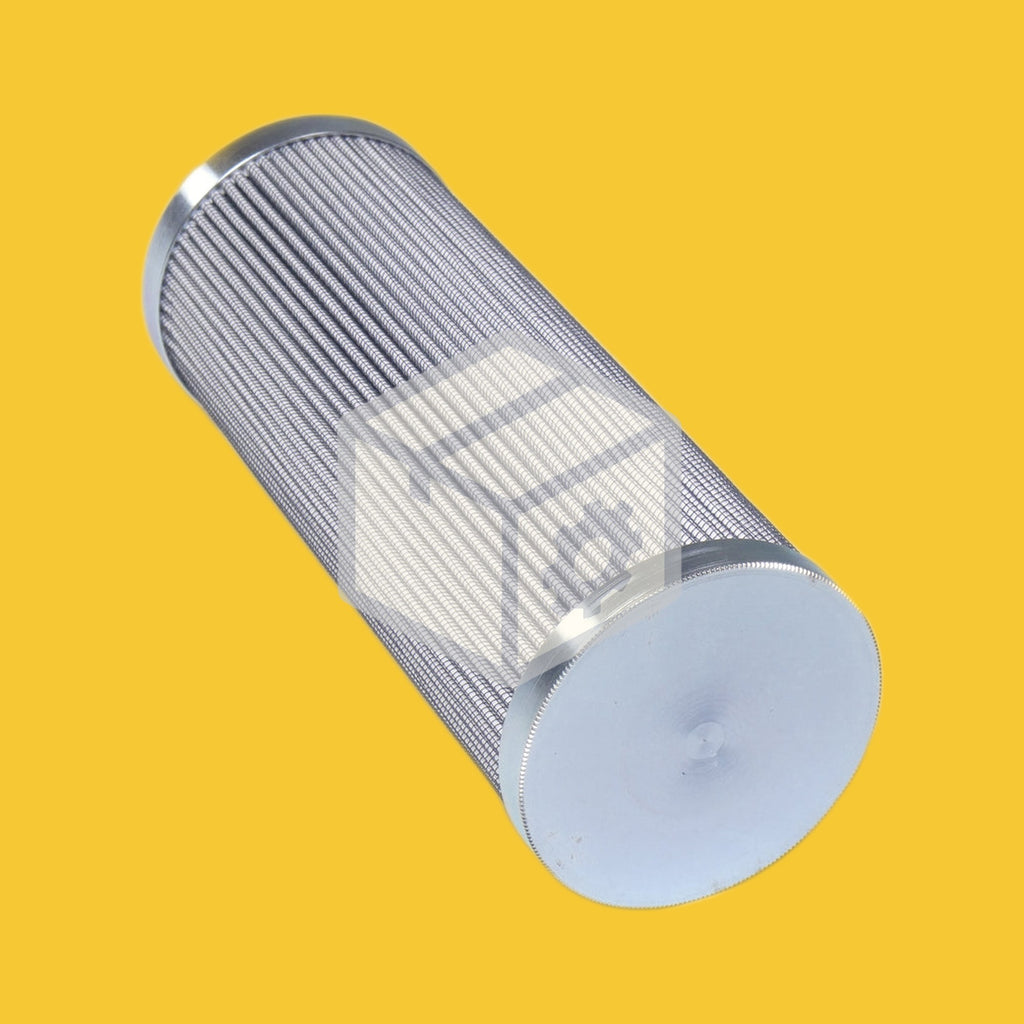

| Part Type | High pressure filter element |
| Replaces | Kaydon KMP9601A03V08 |
| Filtration Media | Pleated glass fibre (microglass) |
| Filtration Rating | 3 µm, beta 1000 (ISO 16889) |
| Flow Direction | Out-In |
| Seal Material | Fluorocarbon (FKM / Viton) O-ring |
| Largest Outer Diameter | 78.7 mm (3 3/32") |
| Largest Inner Diameter | 42.5 mm (1 11/16") |
| Total Height | 208.3 mm (8 3/16") |
| Construction | Single open end, high collapse |
| Collapse Rating | 207 bar (3,000 psid) |
| Element Size | Kaydon KMP9601, 8 in |
| Stat. HS-Code | 842129 |
| Brand | Code |
|---|---|
| Kaydon | KMP9601A03V08 |
| Spare Part Mart | SPM-HYD-2883 |
We check what other aftermarket sellers charge for this same part. Their prices on the date we checked:
| Seller | Price | Checked |
|---|---|---|
| Filtration Point | USD 133.16 | 6 Oct 2026 |
| SONA Filtration | USD 176.62 | 6 Oct 2026 |
| Hydrafil | USD 359.95 | 6 Oct 2026 |
| Spare Part Mart | USD 106.53 | Today |
Our price of USD 106.53 is 20% to 70% less than these sellers.
Found this part cheaper somewhere else? Send us the listing and we will beat it by 5% under our Price Beat Guarantee. Every order is also covered by our 30 day money back guarantee.
Pressure lines ahead of servo valves
Kaydon KMP9601 filters sit after the pump, where a 3 µm high collapse element protects servo and proportional valves even if the element loads up.
Industrial power units
Press, test rig and machine tool power units use the same element in non bypass pressure filters.
Fire resistant and synthetic fluids
Fluorocarbon seals suit synthetic and most fire resistant fluids as well as mineral oil.
Planned maintenance stock
Sites with several filters on the same element can hold stock for scheduled changes at a lower price than buying OEM every time.
No. It is an aftermarket element made to the dimensions and filtration grade of the Kaydon KMP9601A03V08. It is not made by or affiliated with Kaydon, and the part number is used only to show what it replaces.
Yes if your filter takes the Kaydon KMP9601A03V08. Check the old element: 78.7 mm outside diameter, 42.5 mm bore and 208.3 mm overall length.
The body size and grade codes are the same. KMP9601 elements have a high collapse core rated to 3,000 psid for pressure filters without a bypass valve; KMP9600 elements are the standard collapse version. Fit the one your filter calls for.
Fluorocarbon (FKM / Viton) seals. They suit mineral oil, synthetic and most fire resistant fluids and higher oil temperatures.
Change it when the filter's clogging indicator shows the element is loaded, or at the interval in your maintenance plan, whichever comes first.
Yes, we ship worldwide. Shipping is calculated at checkout, and every order is covered by our 30 day money back guarantee and price beat guarantee.
