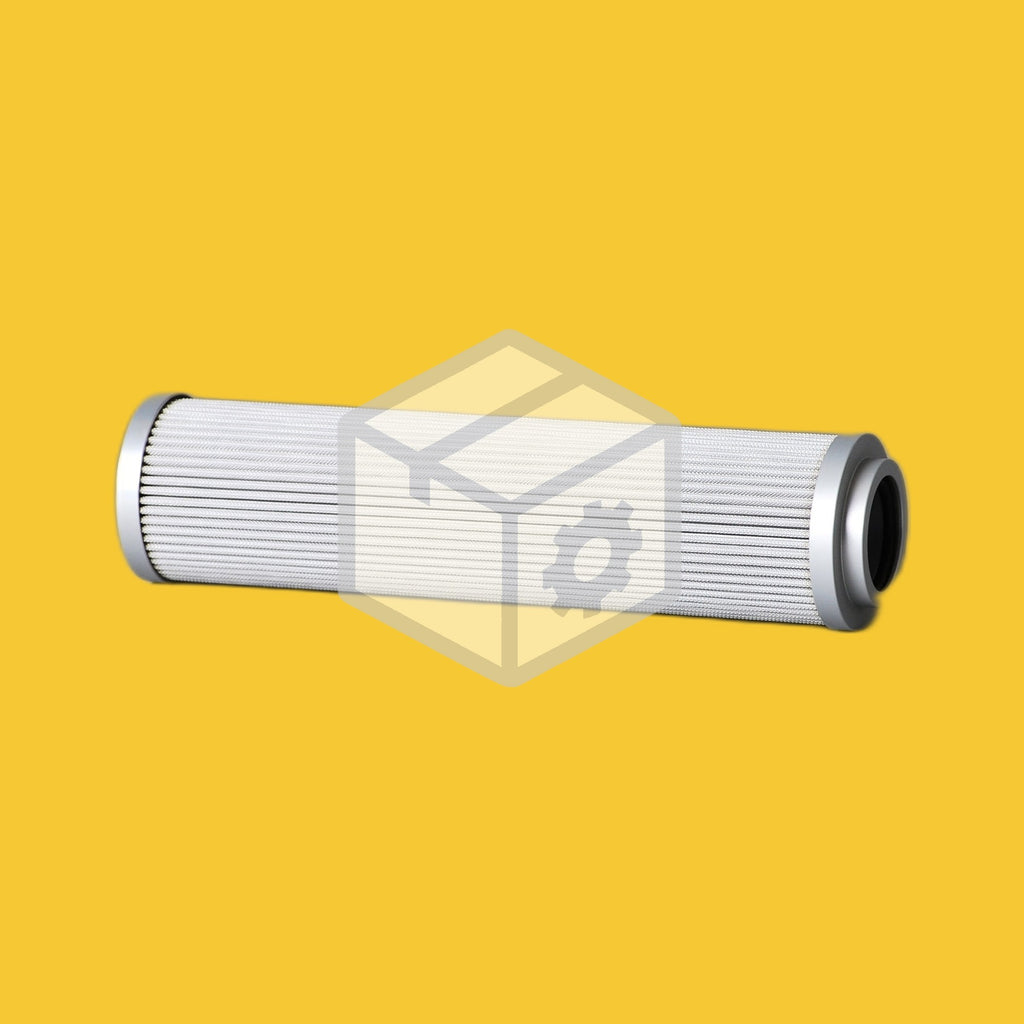

| Part Type | Pressure filter element |
| Replaces | Internormen 01.E 360.6VG.30.E.P (article 301952) |
| Filtration Media | Pleated glass fibre |
| Filtration Rating | 6 µm(c), Internormen 6VG glass fibre grade |
| Flow Direction | Out-In |
| Seal Material | Nitrile (NBR) |
| Largest Outer Diameter | 60 mm (2 3/8") |
| Largest Inner Diameter | 35.3 mm (1 3/8") |
| Total Height | 310 mm (12 3/16") |
| Nominal Size | 360 |
| End Configuration | Single open end |
| Collapse Rating | 30 bar (435 psid) |
| Stat. HS-Code | 842129 |
| Brand | Code |
|---|---|
| Internormen | 01.E360.6VG.30.E.P |
| Internormen | 301952 |
| Spare Part Mart | SPM-HYD-2269 |
Price Beat Guarantee: We've crawled the internet to guarantee you're getting the best price. Here's what competitors are selling this exact filter for:
You're saving 20-38% on Spare Part Mart SPM-HYD-2269 buying from SPM.
Pump outlet pressure filters
Size 360 pressure filters sit straight after the pump on industrial power units. The element stops pump wear debris reaching the valves.
Proportional and directional valves
The 6VG grade suits circuits with proportional and directional valves, where fine particles cause sticking and leakage.
Presses and injection moulding
Presses and moulding machines run long hours at pressure. Changing the element on schedule protects the valve stack.
Hydraulic motors and drives
Pressure filtration ahead of hydraulic motors keeps internal clearances clean and extends motor life.
No. It is an aftermarket element made to the dimensions and filtration grade of the Internormen 01.E 360.6VG.30.E.P (article 301952). It is not made by or affiliated with Internormen or Eaton, and their part numbers are used only to show what it replaces.
Yes if your filter takes the Internormen 01.E 360.6VG.30.E.P (article 301952). Check the old element: 60 mm outside diameter, 35.3 mm bore and 310 mm overall length.
VG is Internormen's glass fibre media and 6 is the grade. It captures particles of 6 µm(c) at a beta ratio of 1000 under the ISO 16889 multipass test.
30 is the 30 bar collapse rating, E the element design and P the nitrile (NBR) seals. The same element with V at the end has fluorocarbon (Viton) seals.
Change it when the filter's differential pressure indicator shows the element is loaded, or at the interval in your maintenance plan, whichever comes first.
