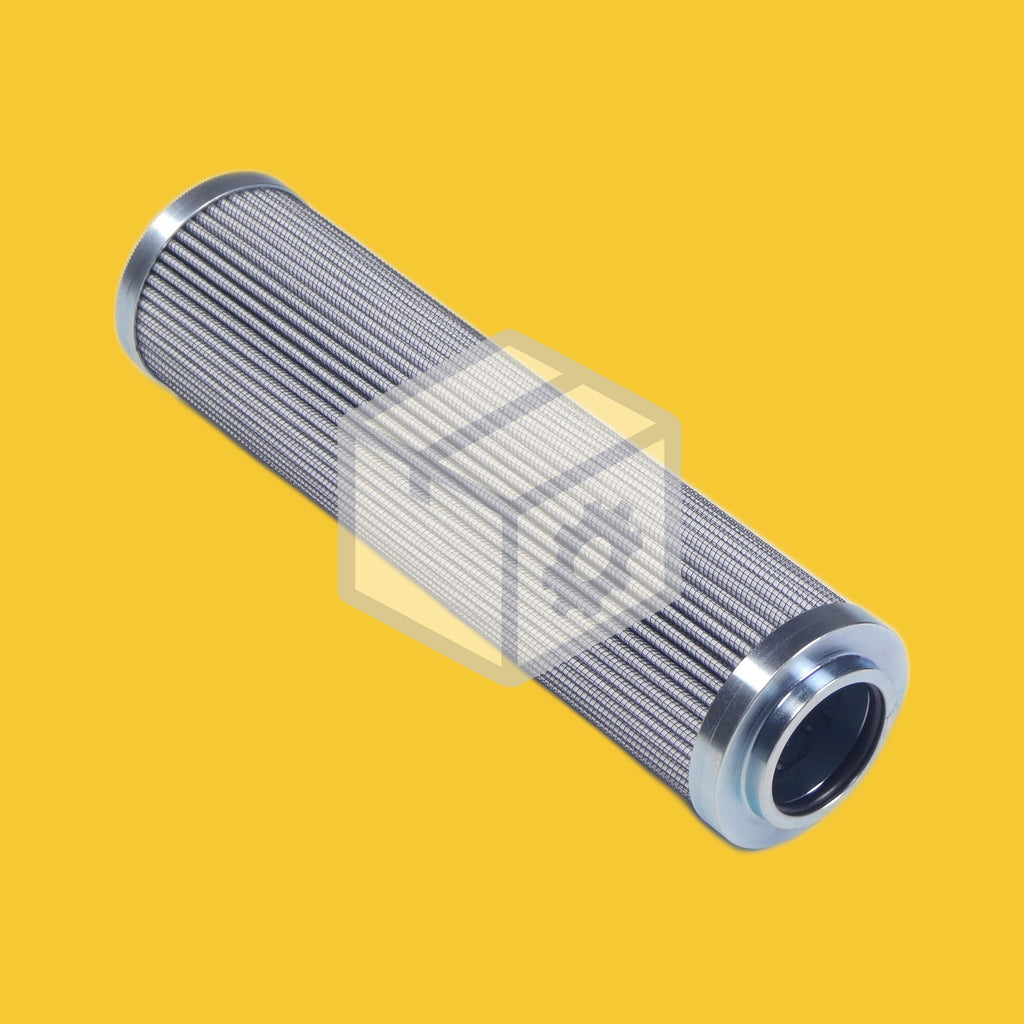

| Part Type | Pressure filter element |
| Replaces | Internormen 01.E 240.3VG.30.E.P (article 319965) |
| Filtration Media | Pleated glass fibre |
| Filtration Rating | 3 µm(c), Internormen 3VG glass fibre grade |
| Flow Direction | Out-In |
| Seal Material | Nitrile (NBR) |
| Largest Outer Diameter | 60 mm (2 3/8") |
| Largest Inner Diameter | 35.3 mm (1 3/8") |
| Total Height | 228.6 mm (9") |
| Nominal Size | 240 |
| End Configuration | Single open end |
| Collapse Rating | 30 bar (435 psid) |
| Stat. HS-Code | 842129 |
| Brand | Code |
|---|---|
| Internormen | 01.E240.3VG.30.E.P |
| Internormen | 319965 |
| Spare Part Mart | SPM-HYD-2286 |
Price Beat Guarantee: We've crawled the internet to guarantee you're getting the best price. Here's what competitors are selling this exact filter for:
You're saving approximately 20% on Spare Part Mart SPM-HYD-2286 buying from SPM.
Pump outlet pressure filters
Size 240 pressure filters sit after the pump on industrial power units. The element stops pump wear debris reaching the valves.
Servo and proportional valves
The 3VG grade protects servo and proportional valves, where fine silt causes spool sticking and drift.
Presses and injection moulding
Presses and moulding machines run long hours at pressure. Changing the element on schedule protects the valve stack.
Turbine and test rig hydraulics
Control circuits and test benches with fine valves use small Internormen pressure filters. Spares on the shelf let the change happen as soon as the indicator trips.
No. It is an aftermarket element made to the dimensions and filtration grade of the Internormen 01.E 240.3VG.30.E.P (article 319965). It is not made by or affiliated with Internormen or Eaton, and their part numbers are used only to show what it replaces.
Yes if your filter takes the Internormen 01.E 240.3VG.30.E.P (article 319965). Check the old element: 60 mm outside diameter, 35.3 mm bore and 228.6 mm overall length.
VG is Internormen's glass fibre media and 3 is the grade. It captures particles of 3 µm(c) at a beta ratio of 1000 under the ISO 16889 multipass test.
30 is the 30 bar collapse rating, E the element design and P the nitrile (NBR) seals. The same element with V at the end has fluorocarbon (Viton) seals.
Change it when the filter's differential pressure indicator shows the element is loaded, or at the interval in your maintenance plan, whichever comes first.
Yes, we ship worldwide. Shipping is calculated at checkout, and every order is covered by our 30 day money back guarantee and price beat guarantee.
